SUMMARY

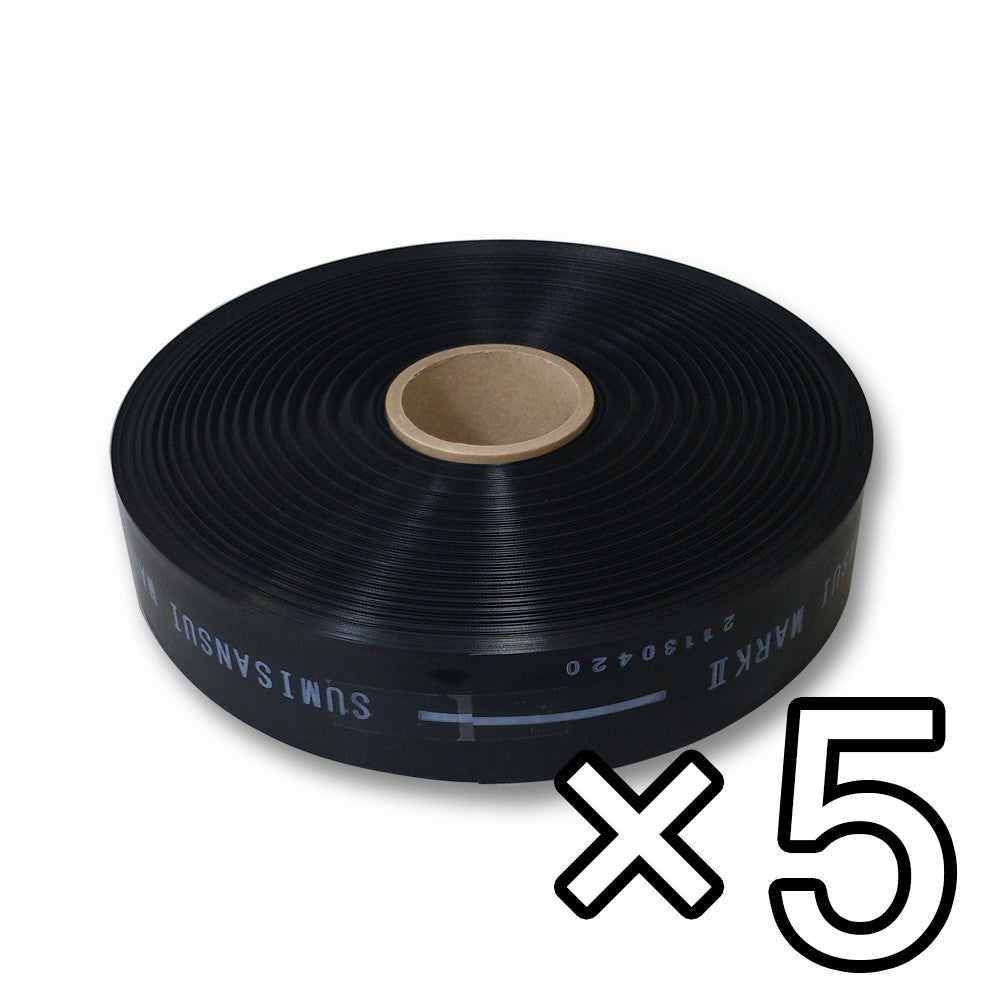

This pack contains five 100 m rolls of Sumisansui Mark II. Mark II is a low-pressure open-field irrigation tube that produces a soft, rain-like spray for gentle and uniform watering.

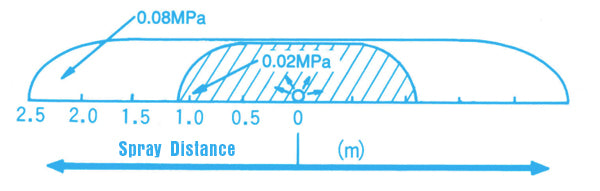

Each roll operates at 0.02–0.08 MPa, provides irrigation width of up to 5 m, and is designed for uniform irrigation along up to 100 m of tube.
Important: This pack contains Sumisansui Mark II, SKU WB1016. It is not WB1132 shown on the manufacturer's international website. The specifications on this page apply to WB1016.
BEFORE YOU BUY
For best performance, use Mark II within the specified pressure range and with sufficient water flow. If multiple lines are operated at the same time, the water supply must be able to support the combined demand.
- Operating pressure: 0.02–0.08 MPa (about 0.2–0.8 bar / 2.9–11.6 psi)
- Maximum irrigation width: up to 5 m per line
- Maximum published flow rate: up to 0.48 L/min·m
- Uniform irrigation length: up to 100 m per line
Filtration: An 80-mesh-or-finer filter is recommended on the water-supply line to help prevent clogging. If your irrigation system already has suitable filtration, no additional filter is needed.
This product contains 5 × 100 m irrigation tube rolls only. Connection parts and winders are not included.
The dedicated One-touch Nipple 20 connects to a 20A PVC fitting. Depending on your local piping standard, a suitable adapter may be required.
If you are unsure about compatibility, please contact us before ordering.
FEATURES
- 5 × 100 m rolls
- Low-pressure operation: 0.02–0.08 MPa
- Maximum irrigation width: up to 5 m per line
- Uniform irrigation along up to 100 m of tube

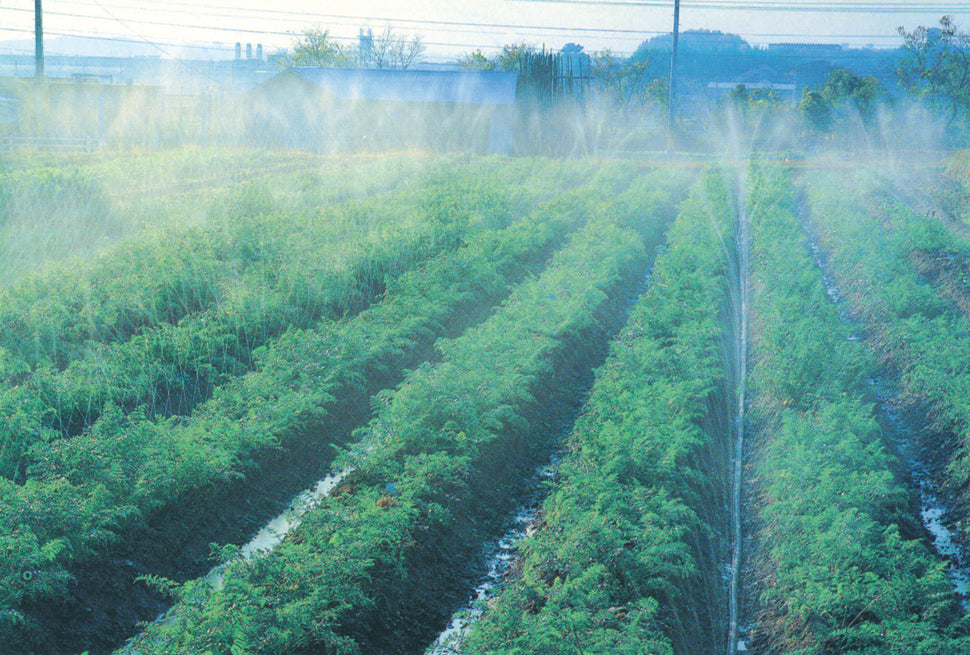

- Soft, rain-like spray with less soil splash
- Special black polyethylene for durability
APPLICATIONS
- Carrots, radishes, burdock root, sweet potatoes, potatoes, spinach, komatsuna, white leeks, lettuce, cabbage, Chinese cabbage, broccoli and other leafy/root vegetables
- Open-field vegetables in general
VIDEO
SPECIFICATIONS
| Pack Contents | 5 × 100 m rolls |
|---|---|
| Tube SKU | WB1016 |
| Equivalent Hose Diameter | 28 mm |
| Flattened Width | 52 mm |
| Operating Pressure Range | 0.02–0.08 MPa |
| Maximum Irrigation Width | Up to 5 m |
| Maximum Published Flow Rate | Up to 0.48 L/min·m |
| Uniform Irrigation Length | Up to 100 m |
| Recommended Filtration | 80 mesh or finer |
| Material | Special black polyethylene |
