SUMMARY

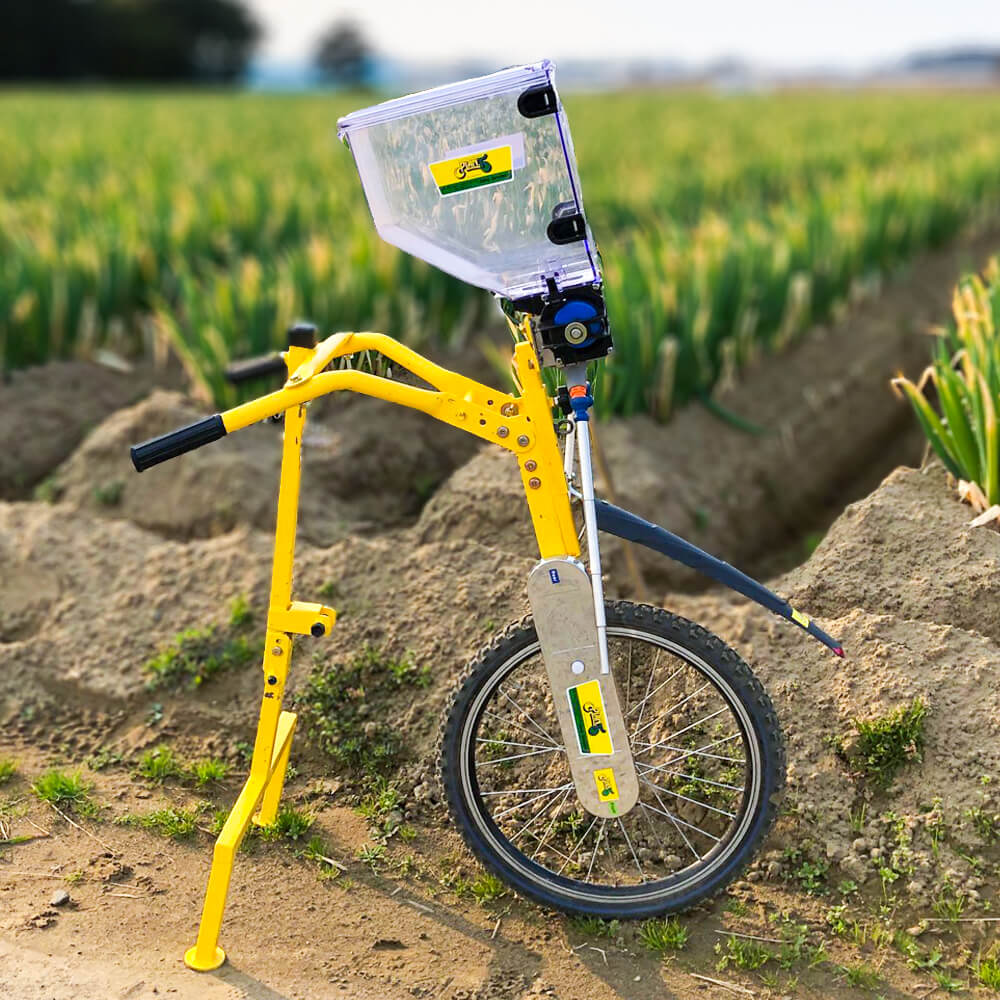

The Jang Seeder Granule Applicator JS-1 is a manual push-type spreader that adopts a precision roll-drive mechanism instead of the conventional gravity-drop method.
Its wheel-linked roll system, connected by a flexible shaft, ensures uniform and accurate application of granules regardless of walking speed or field conditions.
The JS-1 can distribute granules on two rows simultaneously, or on one side only when needed, allowing precise application at the base of each plant.
With a working speed of 1.1 m/s, it covers 0.1 ha (≈ 1 tan) in about 8 minutes — approximately five to six times faster than manual hand spreading.
The JS-1 delivers accurate, consistent, and environmentally friendly granule application, helping reduce labor costs and improve productivity in the field.
For Orizemate and Other Granular Materials
The JS-1 is well suited for applying Orizemate granules and other compatible granular materials, including granular pesticides, fertilizers, and soil conditioners. Its roll-drive metering system is designed to maintain a stable application rate for targeted application along rows or around plant bases.
The machine is not limited to Orizemate or pesticide use. Always check and adjust the discharge rate before use, and follow the product label and local regulations when applying any agricultural chemical.
FEATURES
-
High accuracy of approximately 99%
The drive-wheel mechanism maintains a constant application rate, even when pushed quickly or slowly. -
Compatible with most granular pesticides and fertilizers
Suitable for a wide range of agricultural materials, including pesticide granules and soil conditioners. -
Adjustable height
The body height can be adjusted to suit both flat and raised ridges. -
Adjustable application rate
The amount of granules applied can be finely tuned by changing sprocket combinations. -
Spot and row control
Enables targeted application at plant bases and adapts to various ridge widths. -
Left/right selective operation
Spread both sides simultaneously for speed, or one side only for finishing work. -
Optional attachments available
Front spreading and topdressing attachments can be mounted for expanded functionality.
SPECIFICATIONS
| Model Name | JS-1 |
|---|---|
| Type | Manual push-type |
| Dimension(mm) | 900x 530x 1370 (LWH) |
| Weight(kg) | 15 |
| Hopper Capacity(L) | 10 |
| Work Efficiency | 1.1 m/s, approx. 8 min per 0.1 ha (≈1 tan) |
| Drive System | Wheel-contact drive with sprocket chain and flexible shaft |
| Applicable Granules | Pesticide granules, fertilizers, soil conditioners, soil nutrients |
NOTE
Optional attachments for topdressing and front spreading are not included.
