SUMMARY

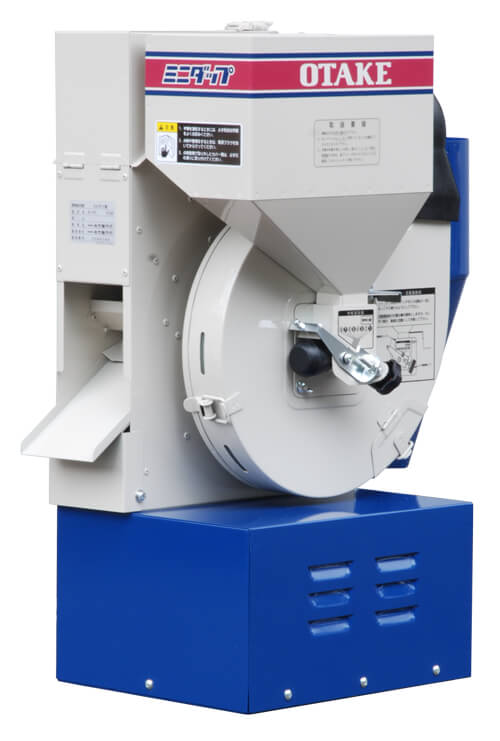

The Otake FC2R is a compact 100V rice huller (rice husker) for small-batch rice processing and quality inspection. It can process even a handful of rice, with a standard processing capacity of approximately 60–120 kg/h.
FC2R is the upgraded model of the FC2K.
POWER & FREQUENCY — PLEASE CHECK BEFORE ORDERING
- Power supply: 100V / 250W
- Frequency: Select either 50Hz or 60Hz to match your local electrical frequency.
- The 50Hz and 60Hz versions are the same price.
- If your local supply voltage is higher than 100V, an appropriate step-down transformer may be required.
Not sure which version or transformer you need? Contact us before ordering and tell us your country and local power supply specifications.
KEY FEATURES
- Suitable for small quantities — even a handful of rice can be processed.
- Standard processing capacity: approximately 60–120 kg/h.
- Compact 23 kg body with a 3.5 kg hopper.
- Useful for small-scale rice processing and quality inspection.
- Genuine replacement parts are available through Japan Agri Trading.
OTHER GRAIN APPLICATIONS
The FC2R is originally designed as a compact rice huller, but its compact size also makes it useful for small-batch dehulling trials with other grains.
Grain characteristics can vary greatly by crop, variety, grain size, moisture condition and degree of drying. There is no single standard operating speed that applies to every non-rice application. For other grains, begin with a small quantity, adjust the operating speed and feed rate while checking both hull removal and kernel breakage, and repeat the process as necessary.
BUCKWHEAT
Buckwheat is particularly sensitive to operating speed and can break easily. One-pass dehulling may be approximately 50–60% under reference conditions, although actual results vary depending on crop condition, variety, grain size, drying and other factors.
For thorough dehulling, grade the buckwheat by size, dehull it, screen out the already-dehulled kernels, and then process the remaining hulled grain again. Lower-speed pulley and V-belt configurations can also be used when gentler processing is required.
ADLAY (HATOMUGI)
Results vary considerably depending on the material. As a general reference, approximately 50–90% may be dehulled. Drier grain is more prone to breakage, so lower-speed processing is preferable when breakage becomes a concern. Because separating hulled and unhulled grain can be difficult, repeated passes may be necessary while checking the result.
OATS
Oat kernels are relatively robust compared with some other grains. As a general reference, approximately 80% may be dehulled, and repeating the process about twice may work well without intermediate sorting, depending on the material.
OTHER GRAINS
Other small grains may also be tested with the FC2R, but there is no single recommended setting that applies to every material. Start with a small batch and adjust the operating conditions according to the grain and the result you need.
The percentages above are approximate reference values, not guaranteed performance figures. Actual results vary according to the material and operating conditions.
VIDEO
SPECIFICATIONS
| Model | FC2R |
|---|---|
| Dimensions | 598 × 357 × 628 mm |
| Weight | 23 kg |
| Hopper capacity | 3.5 kg |
| Main shaft speed | 3,200–3,900 rpm (standard: 3,500 rpm) |
| Standard processing capacity | 60–120 kg/h |
| Motor | 100V / 250W |
| Frequency | 50Hz or 60Hz — select when ordering |
TRANSFORMERS
Because FC2R is a 100V machine, customers in countries with a higher supply voltage may need a suitable step-down transformer. We currently offer transformer options for several input-voltage ranges:
Please confirm your local voltage, frequency, plug type and required electrical capacity before selecting a transformer. If you are unsure, contact us and we will help you check the appropriate setup.
OPTIONAL PARTS & SUPPORT
Auxiliary Hopper
The optional auxiliary hopper increases the total hopper capacity from 3.5 kg to 10 kg, reducing the need for frequent refilling when processing larger batches.
View the FC2R Auxiliary Hopper
Genuine Replacement Parts
Genuine FC2R replacement parts are available for maintenance and long-term use:
If you are unsure which optional or replacement part you need, contact us with your FC2R model information and the part you are looking for.
FAQ
Which frequency should I choose?
Choose the FC2R version that matches the frequency of your local electrical supply: 50Hz or 60Hz. If you are not sure, contact us before ordering.
Can I use FC2R with 110V, 120V, 220V, 230V or 240V power?
FC2R itself is a 100V machine. Depending on your local supply, a suitable step-down transformer may be required. Transformer selection should be based on your actual local voltage, frequency, plug type and required capacity.
Can FC2R process a very small quantity of rice?
Yes. FC2R can process even a handful of rice, making it useful for small-batch processing, sample testing and quality inspection.
Can FC2R process grains other than rice?
Yes, FC2R is also used for small-batch dehulling trials with grains such as buckwheat, adlay (Hatomugi) and oats. Results vary by material, so begin with a small quantity and adjust the operating conditions while checking the result.
Is there a standard speed for each non-rice grain?
No single fixed setting applies to every material. The appropriate speed and feed rate should be adjusted according to the actual grain, dryness and the balance between dehulling and kernel breakage.
Can I purchase replacement parts later?
Yes. Genuine FC2R replacement parts are available through Japan Agri Trading. Please contact us with the model name and the part you need.
