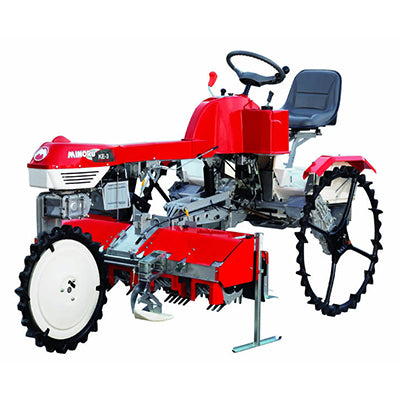

SUMMARY
Mid-mount system with high weeding effect.
FEATURES
- Small turning is also possible with the three-wheel type traveling unit.
- The weeding section is placed on the mid mount.
It is easy to check the front and work conditions and prevent line deviation. - Adaptation interval is 33㎁E/li>
- Working speed 1.2m / s.
- The work efficiency is about 10a/20min.
SPECIFICATIONS
Power tiller
| Model Name | KE-3 |
|---|---|
| Drive System | 3 wheel drive |
| Dimension (mm) | 2730 |
| Width (mm) | 1346 |
| Hight (mm) | 1555 |
| Minimum ground clearance (mm) | 454 |
| Engine Model | EK30 |
| Engine Type | Air-cooled 4-cycle gasoline engine |
| Total Displacement | 0.296 L (296cc) |
| Output / Speed |
5.5kW(7.5 PS) / 3600rpm Max 7.4kW(10.0PS)/3600rpm |
| Fuel | Unleaded gasoline for automobiles |
| Fuel Tank | 6.0 L |
| Starting Method | Cell starter |
| Steering method | One wheel type (Power steering) |
| Front | Rubber rug (ρE80mm) |
| Rear | Rubber rug (ρE00mm) |
| Wheelbase | 1695mm |
| Transmission method | Hydraulic transmission (HST) |
| Gears |
HST Main transmission: front stepless Reverse stepless (Auxiliary transmission: 2 steps) |
| Work Speed | 0-1.2m/s |
| Safety number | 40093 |
Weeder
| Model Name | KW4 |
|---|---|
| Dimension (mm) | 971 |
| Width (mm) | 1555 |
| Hight (mm) | 813 |
| Weight (kg) | 85 |
| Ataptable row | 4 |
| Ataptable row width (mm) | 33 |
| Efficiency | 10a/20-30min |
