SUMMARY
KUBOTA SPH400 is battery-powered for highly efficient harvesting of house-grown spinach.
VIDEO
FEATURES

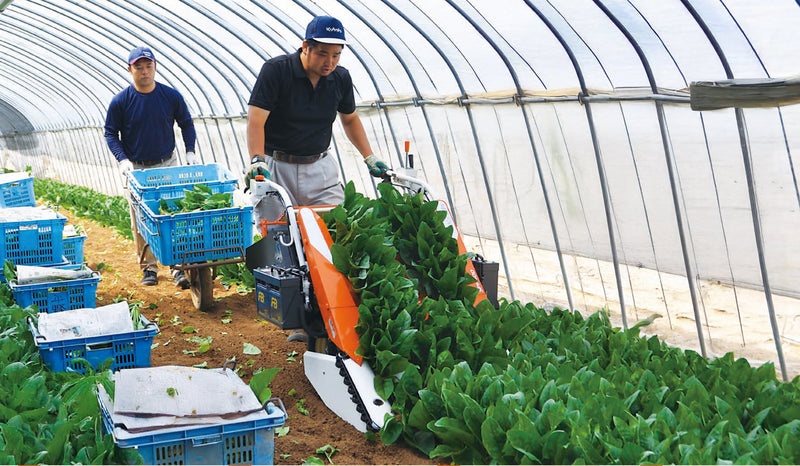

Comfortable working posture
Harvesting can be done in a standing posture without bending at the waist, which reduces the burden on the body.

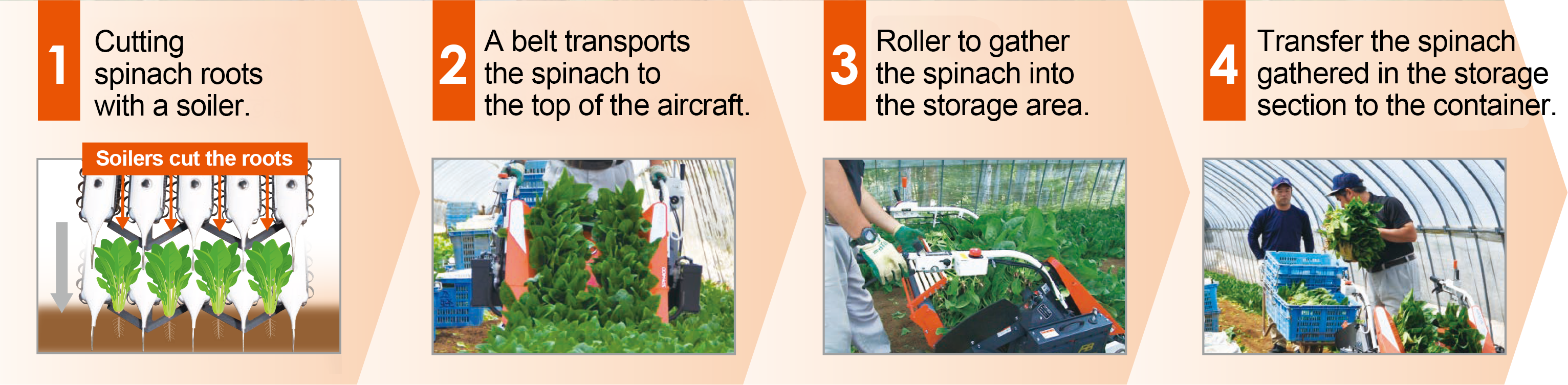

Simultaneous harvesting of 4 rows
4 rows of spinach are harvested at the same time, which is up to 10 times more efficient* than manual harvesting.

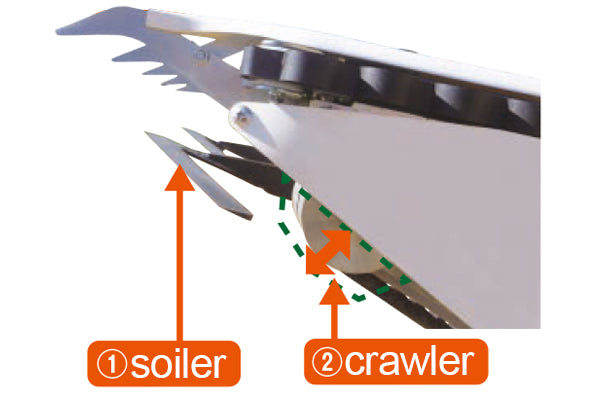

Adjustable Root Cutting Position
Height adjustment of the soiler and crawler makes it easy to adjust the mowing depth according to the field and cultivation.
Electric
Powered by battery and electric motor, it has no exhaust gas, low noise and low vibration. The battery can be easily recharged at a household outlet.

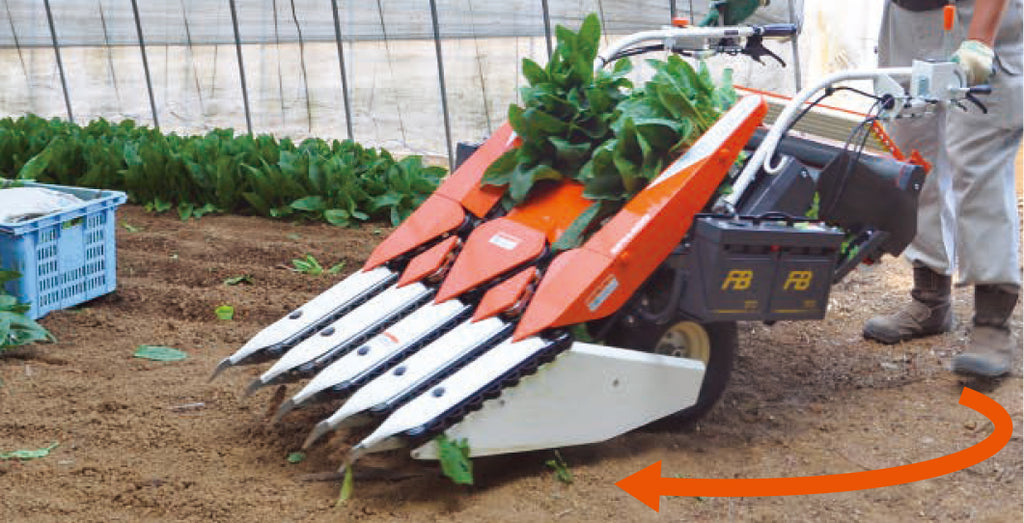

Compact size
Short overall length for easy maneuvering.
Less pillow mowing is required due to its small size. It can also be transported with a light truck, making it easy to move to remote fields.
SPECIFICATIONS
| Model name | SPH400 | ||
|---|---|---|---|
| Target crops | House-grown spinach | ||
| Dimension | Length (mm) | 1775 | |
| Width (mm) | 1000 | ||
| Height (mm) | 1025 | ||
| Weight (kg) | 190 | ||
| Prime mover | Type | Brush motor | |
| Rated output (W) | 600 | ||
| Rated speed (24V) (rpm) | 2350 | ||
| Battery type | Lead-acid battery | ||
| Voltage - Capacity | 24V (12V-17Ah x 2 pcs) x 2 sets in parallel | ||
| Continuous use time | approx. 120 min. | ||
| Running section | Wheels | Tubeless tires 5.00A-6 | |
| Transmission system | 2-step sub-shift x stepless speed change by drive motor rotation | ||
| Moving speed | Forward (m/s) | Work : 0 to 0.37 | |
| Movement : 0 to 1.10 | |||
| Backward (m/s) | 0 to 0.18 | ||
| Mowing section | Number of mowing strips (strips) | 4 | |
| Spacing between strips (mm) | 150[fixed] | ||
| Root cutting depth adjustment | Manual handle adjustment | ||
| Height position adjustment | Manual handle adjustment | ||
| Cutting method | Duplex soiler | ||
| Number of operators | 1 operator | ||
