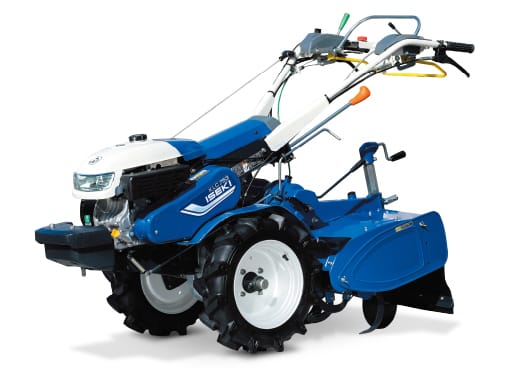

ISEKI Power Tiller KLC753

SUMMARY

The ISEKI KLC753 series is a powerful and easy-to-handle walk-behind cultivator designed for efficient tillage in a wide range of field conditions.
With strong working performance, practical controls, and safety-focused design, it supports comfortable and reliable operation.

FEATURES

New Engine

The KLC753 series is equipped with a new engine that produces cleaner exhaust emissions, making it friendlier to both the environment and the operator.
This OHV gasoline engine delivers a compact design, low center of gravity, and high output.

Excellent Operability and Work Efficiency

Designed for convenience and ease of use, the KLC753 series offers high operability and efficient field performance.

4-Speed Rotary Transmission

By changing the combination of the rotary speed lever and the counter chain case, four rotary speed settings are available.
This allows the operator to select the most suitable rotary speed for each task.

Bevel Reduction Tail Wheel Adjustment

The tail wheel can be adjusted with light operating force, making tilling depth adjustment during operation easier and smoother.

Side Clutch

The side clutch can be operated with light force, allowing smooth and agile turning during work.

Single Lever for Main and Sub Transmission

The main transmission and sub transmission can both be controlled with a single lever.
This allows more precise selection of working speed according to the job.

High-Precision Inclined V-Cut Rotary

The inclined tilling shaft extends down to the lower part of the chain case, enabling clean tillage with little untilled residue.
It also features an anti-grass wrapping mechanism, helping prevent weeds from winding around the rotary and making operation easier.

One-Touch Handle Height Adjustment

The handle height can be adjusted to three positions with a one-touch lever near the operator’s hands.
It can be adjusted according to field conditions, working style, and operator preference, helping maintain a comfortable posture and reduce fatigue during long hours of work.

Cam-Type Rotary Docking Mechanism

The rotary uses a hook-type attachment system, allowing easy installation and removal without tools.
The rotary can also be secured without tools thanks to the convenient handle-type fixing system.

Rotary Clutch Lever

The rotary clutch can be engaged and disengaged using a lever near the operator’s hands.
Because the rotary can be stopped easily, turning can be performed more safely and smoothly.
This is also useful for inter-row cultivation and weeding without damaging crops.

Magic Lift

Axle implements, paddy wheels, and tread adjustment can be handled easily, improving convenience during setup and changeover.

SAFETY

Safety Switch

If the main clutch is engaged, the safety switch prevents the engine from starting even when the recoil starter is pulled.
This helps prevent accidents caused by incorrect operation.

Emergency Engine Stop Switch

In an emergency, the engine can be stopped instantly by simply pressing the switch.

Rotary Reverse Interlock Mechanism

When the rotary clutch lever is engaged, the transmission lever cannot be shifted into reverse.
Likewise, when the transmission lever is in reverse, the rotary clutch lever cannot be engaged.
This mechanism helps prevent accidents during reverse operation.

Emergency Stop Lever

During reverse travel or in an emergency, if the emergency stop lever touches the operator’s body, the clutch is disengaged and the machine stops automatically for added safety.

MODEL OPTIONS

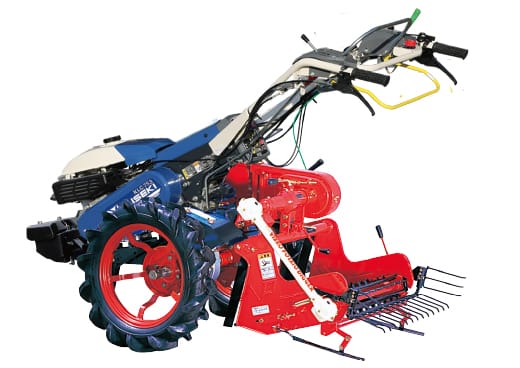

Harvesting Model

The conveyor is coated with rubber, helping prevent damage to potatoes during harvesting work.

Paddy / Wet Field Model

This model is suitable for tillage work in paddy fields, upland fields, and wet field conditions.

SPECIFICATIONS
