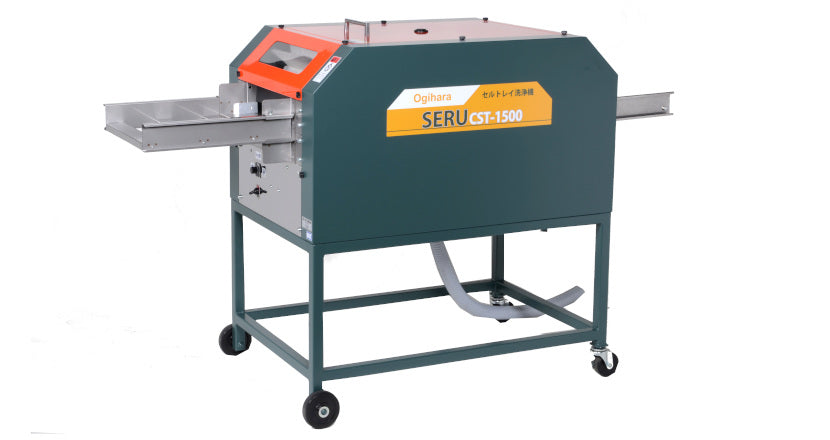

Cell Tray Cleaning Machine CST-1500

Machine TraySKU: CST-1500
No reviews

Price:
Sale price$3,602.00 USD

Description

FEATURES

  • 8 brushes and 12 high-pressure cleaning nozzles allow for high-level cleaning!
  • Using a high-pressure cleaning shower and a brush with a large amount of bristles, you can remove dirt of the cell tray.
  • The cleaning brush is resistant to friction and has a large amount of bristles.
  • In addition, the half-moon structure that can be split from the shaft allows for easy replacement.
  • Designed for cleaning Vegetable Seedling Cell Trays.
    Vegetable Seedling Cell Trays are trays that have been certified by the Ministry of Agriculture, Forestry and Fisheries Japan unified standard and are compatible with automatic transplantation using vegetable transplanters.

SPECIFICATIONS

Maximum capacity 700 trays/hour
Dimensions
(Length x Width x Height)
1,615 x 680 x 1,040 mm
Weight 80 kg
Brush 8 brushes for cleaning and feeding
Water supply method High pressure cleaning nozzle:
4 nozzles on the upper part, 8 nozzles on the lower part
Required power source Discharge 15L/min, 3.0MPa or more
Connection: 8.5mm diameter hose female
Speed adjustment Tray feeding: Continuously variable speed
Washing: Continuously variable speed
Motors Feeding: 100V/40W
Cleaning: 100V/40W
Included accessories Tray holder
