SUMMARY

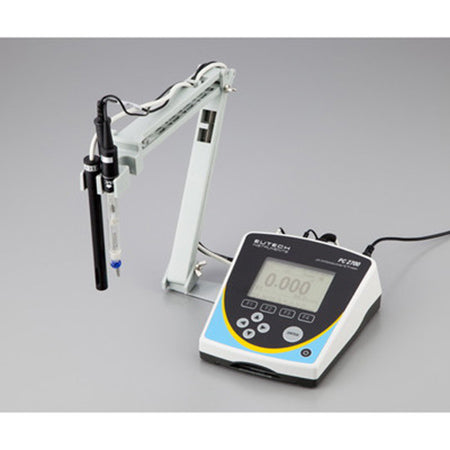

Desk top tester that can measure pH · ORP ·Temperature · Conductivity · TDS · Salinity · Resistivity.
It is widely used as research equipment, scientific equipment, and testing equipment.
You can connect it to your computer.
FEATURES
- pH · ORP ·Temperature · Conductivity · TDS · Salinity · Resistivity Meter
- Sensor can be replaced.
- pH sensor (ECFG7370101B), conductivity sensor (CONSEN 9201 D), pH calibration solution, conductivity calibration solution, arm stand come with.
SPECIFICATIONS
| Model Name | PC700 |
|---|---|
| Interface | RS232C |
| Memory |
500 data |
| Supported OS |
Windows (R) 98/2000 / XP / Vista (R) (32 bit) / 7 (32 bit) |
| Dimension |
155 x 175 x 69 mm |
| Weight | 650 g |
| Function |
Automatic / manual temperature compensation Automatic logging alarm |
| pH range |
-2 to 20 pH |
| pH resolution |
0.1 / 0.01 / 0.001 pH |
| pH accuracy | ±0.002 pH |
| Range of accessory pH sensor |
0 to 13 pH (at 0 to 100 degrees Celsius) |
| Accessories pH calibration solution |
4.01 pH, 7.00 pH, 1 0.01 pH |
|
ORP range (ORP electrode can be used) |
-2000.0 to 2000.0mV |
| ORP resolution |
0.1mV |
| ORP accuracy | ±0.2mV |
| Temperature range |
0 to 100 degrees Celsius |
| Temperature resolution |
0.1 degrees Celsius |
| Temperature accuracy |
±0.3 degrees Celsius |
| Salinity range |
0 to 80 ppt |
| Salinity resolution | 0.1 ppt |
| Salinity accuracy |
±1 % FS |
| TDS range |
0 to 350 ppt (at TDS factor 1.0) |
| TDS resolution |
0.01 / 0.1 ppt · 0.001 / 0.01 / 0.1 ppt |
| TDS accuracy |
±1 % FS |
| Resistivity range |
2.000 Ω to 20.0 MΩ |
| Resistivity resolution |
0.01 / 0.1 Ω · 0.001 / 0.1 K Ω · 0.01 M Ω |
| Resistivity accuracy |
±1 % FS |
| Conductivity measurement range |
0.05μS / cm to 500mS / cm |
| Conductivity resolution |
0.01 / 0.1μS / cm · 0.001 / 0.01 / 0.1mS / cm |
| Conductivity accuracy |
±1 % FS |
| Range of accessory conductivity sensor |
0 to 350 mS / cm (at 0 to 100 degrees Celsius) |
| Accessories conductivity calibration solution |
1413μS / cm |
