SUMMARY

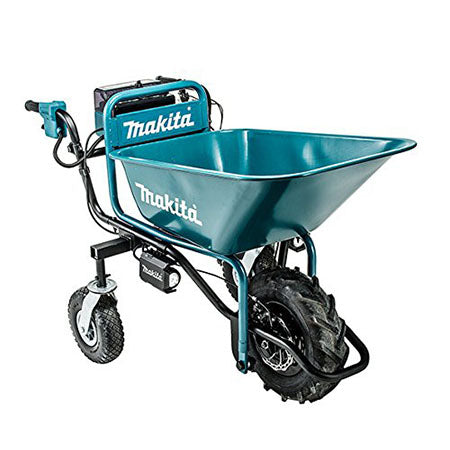

Power-Assisted Wheelbarrow is a convenient solution for material transport on job sites.
It engineered for increased dust and water resistance for operation in harsh job site conditions.
Reversible for versatility and convenience.
Interchangeable steel tube flat bed or steel bucket. (steel tube flat bed is an optional)
Batteries and charger are sold separately.
FEATURES
For transporting sand, gravel and soil.
Note: It is not suitable for watery items such as water and concrete.
With a lock lever, it is easy to lower the transported things.
The maximum loading capacity is 130 kg.
You can carry anything like crops and timber.
Maximum climbing ability is 12 °
Equipped with a powerful brake, downhill is also safe.
Travelable distance is about 7.2km.
Two batteries can be attached
Even one battery drive.
Battery is sold separately.
Stepless adjustment of rear wheel tire width possible
It is convenient for driving on a field or where the road surface is narrow.
(Adjustment width 480 to 760 mm)
Unicycle Foot [Standard Accessories]
Convenient for traveling on bad roads.
2 high brightness LED lights mounted
Shine brightly even in dimly lit environments and secure visibility.
Auto-off feature prevents turning off lights.
Compact design that can be loaded into a car
It will be more compact when you fold the handle.
Dust and water resistance
SPECIFICATIONS
| Model Number | CU180DZE½E½{A-65486 |
|---|---|
| Motor | In-wheel motor |
| Voltage | DC 18V |
| Maximum speed |
Advance: 3.5km / h or 1.5km / h Reverse: 1.0km / h |
| Travelable distance * 1 |
7.2km (BL1860B x 2 pieces) E½E½¦ 2 batteries available / with switch |
| Usable time E½E½¦ 1 |
120 minutes (BL1860B x 2 pieces) E½E½¦ 2 batteries available / with switch |
| Minimum turning radius |
1,075 mm (When rotating around the front wheel) |
| Maximum climbing ability | 12 ° |
| Maximum loading capacity | 130 kg |
| Brake |
Front wheel: Wire type disc brake Rear wheel: Fixed pedal type |
| Tire |
Advance: Tubeless tire Reverse: No punk tire |
| Machine dimensions (length x width x height) |
When the pipe bucket is attached Maximum: 1,310mm x 790mm x 900mm Minimum: 1,110 mm x 590 mm x 820 mm |
| Mass (including one battery BL1830B) |
When the pipe bucket is attached 40 kg |
VARIATION
E½E½ECU180DZ
Only a main part
E½E½ECU180DZE½E½{A-65470
Flat Dolly type
