SUMMARY

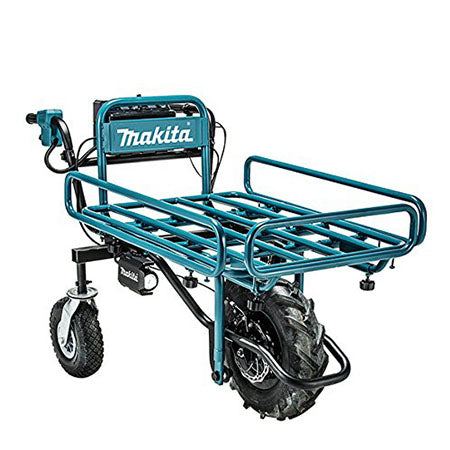

Power-Assisted Flat Dolly is a convenient solution for material transport on job sites.
It engineered for increased dust and water resistance for operation in harsh job site conditions.
Reversible for versatility and convenience.
Interchangeable steel tube flat bed or steel bucket (steel bucket optional)
Batteries and charger are sold separately.
FEATURES
The size of the loading frame can be adjusted by the size of the package.
Adjustment range: (W) 660 to 980 mm (L) 850 to 1095 mm
The maximum loading capacity is 130 kg.
You can carry anything like crops and timber.
Maximum climbing ability is 12 °
Equipped with a powerful brake, downhill is also safe.
Travelable distance is about 7.2km.
Two batteries can be attached
Even one battery drive.
Battery is sold separately.
Stepless adjustment of rear wheel tire width possible
It is convenient for driving on a field or where the road surface is narrow.
(Adjustment width 480 to 760 mm)
Unicycle Foot [Standard Accessories]
Convenient for traveling on bad roads.
2 high brightness LED lights mounted
Shine brightly even in dimly lit environments and secure visibility.
Auto-off feature prevents turning off lights.
Compact design that can be loaded into a car
It will be more compact when you fold the handle.
Dust and water resistance
SPECIFICATIONS
| Model Number | CU180DZE½E½{A-65470 |
|---|---|
| Motor | In-wheel motor |
| Voltage | DC 18V |
| Maximum speed |
Advance: 3.5km / h or 1.5km / h Reverse: 1.0km / h |
| Travelable distance * 1 |
7.2km (BL1860B x 2 pieces) E½E½¦ 2 batteries available / with switch |
| Usable time E½E½¦ 1 |
120 minutes (BL1860B x 2 pieces) E½E½¦ 2 batteries available / with switch |
| Minimum turning radius |
1,075 mm (When rotating around the front wheel) |
| Maximum climbing ability | 12 ° |
| Maximum loading capacity | 130 kg |
| Brake |
Front wheel: Wire type disc brake Rear wheel: Fixed pedal type |
| Tire |
Advance: Tubeless tire Reverse: No punk tire |
| Machine dimensions (length x width x height) |
When the pipe frame is attached Maximum: 1,560 mm x 1,060 mm x 900 mm Minimum: 1,110 mm x 670 mm x 820 mm |
| Mass (including one battery BL1830B) |
When the pipe frame is attached 45 kg |
VARIATION
E½E½ECU180DZ
E½E½@Only a main part
E½E½ECU180DZE½E½{A-65486
E½E½@Wheelbarrow type
