SUMMARY
The use of carbon pipes reduces the workload by reducing the weight. (Our conventional product weight ratio: minus about 10%)
Drift is greatly reduced due to the use of a powerful kirinashi nozzle.
The powerful kirinashi nozzle enlarges the spray particles by mixing in air, and gives the momentum to the spray particle size to improve the adhesion of the chemicals to the back of the leaves by secondary crushing.
By turning the hand grip, you can use two types of heads for long distances and two heads for medium and short distances. Ideal for street trees, standing trees, fruit trees (orange, apples, etc.).
FEATURES

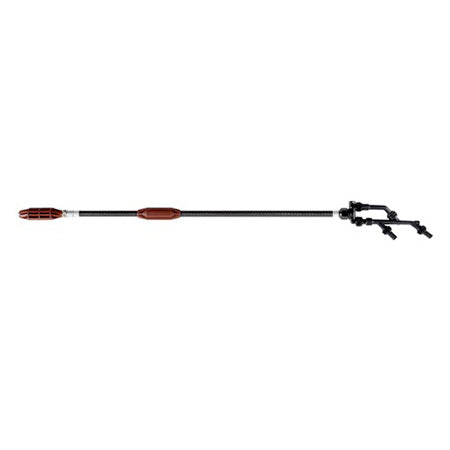

- Kirinashi (Ultra Low-Drift) Switching 900 Carbon
- To save pesticides
- Drift-reducing
- By turning the hand grip, you can use two types of heads for long distances and two heads for medium and short distances. Ideal for street trees, standing trees, fruit trees (orange, apples, etc.).
SPECIFICATIONS
| Average Drop Size (μm) | 600 to 860 (1.0MPa) |
|---|---|
| Pressure Range (MPa) | 0.5 to 1.5 |
| Code No. | 14 12 89 | |
|---|---|---|
| Product Name | Kirinashi (Ultra Low-Drift) 900 Carbon 1 or 2 Switching nozzle | |
| Nozzle Number | 1 | 2 |
| Press |
5.7 l/min (1.0MPa) 7.0 l/min (1.5MPa) |
6.3 l/min (1.0MPa) 7.7 l/min (1.5MPa) |
| Nozzle | N-KE-20B | N-KF-15B |
| Reach Distance | approx. 10m | approx. 6m |
| Coverage | approx. 5cm | approx. 60cm |
| Length/Weight | 106cm / 570g | |
| Adapter | G1/4 | |
# Coverage as of 1 m from nozzle head.
Enlarged image of carbon material
