Description
SUMMARY
Compact nitrate ion meter to measure nitrate ions by simply dropping a small amount (from 0.3mL) of sample directly
Reliable ion measurement by ion electrode method*. With its easy-to-use style and wide measurement range, it can be flexibly used in all aspects of nitrate ion measurement, including soil and crop flavor control.

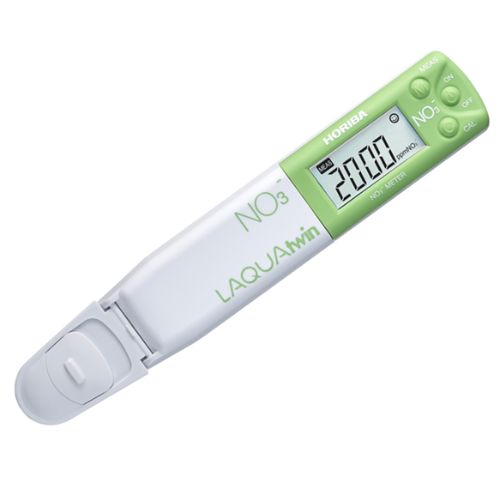

LAQUAtwin NO3-11C (for crops), which includes a kit of the necessary items for measurement, such as pressing and soil preparation for crops.
LAQUAtwin NO3-11S (for soil) and the widely usable B-743 (for general use).
FEATURES
- Temperature sensor adjustment function
- Auto stability function
- Arbitrary change of low and high concentration calibration points
- Waterproof and dustproof construction (IP67 equivalent)
- Automatic range switching
- Automatic temperature compensation
- Auto hold
- Auto power off (30 minutes)
- Nitrate nitrogen (NO3--N) concentration can be displayed
- Unit change (ppm ⇔ mg/L) *Only B-742, kg/10a of nitrate nitrogen (NO3--N) can be displaye
- Temperature measurement and voltage (mV) measurement mode
- Measured value correction function (multiply/add)
- Remaining battery level display
- Sensor exchangeable
SPECIFICATION
| Measuring principle | Ion electrode method |
| Required sample volume | 0.3 ml or more *1 Measurement is possible from 0.05 mL by using sampling sheet B. |
| Measuring range | NO3-:100 to 9900ppm(mg/L) NO3- -N:23 to 2200ppm(mg/L) |
| Resolution | ①0 to 99 ppm: 1 ppm ②100 to 990 ppm: 10 ppm ③1000 to 9900 ppm : 100 ppm |
| Temperature display range | 0 to 50°C/0.1°C |
| Calibration | Max. 2 points |
| Accuracy | ±10% (relative to reading) *3 |
| Main functions | Arbitrary change of low and high concentration calibration points Temperature sensor adjustment function / Auto hold Auto stability function Auto power off (30 minutes) / Remaining battery level indication / Sensor exchangeable |
| Water resistance | IP67*4 |
| Display method | Custom (monochrome) digital LCD display (with backlight function) |
| Operating environment | 5 to 40°C, 85% relative humidity or less (non-condensing) |
| Power source | Two 3V coin-type lithium batteries (CR2032) |
| Battery life | Approx. 400 hours of continuous use (with backlight off setting)*5 |
| Main material | ABS resin |
| Dimensions and weight | W164 mm x H29 mm x D20 mm (excluding protruding parts) / 50 g (excluding batteries) |
| Accessories | 2 coin-type lithium batteries (CR2032) / 1 syringe, instruction manual / quick manual / storage case / standard nitrate ion solution (300 ppm, 5000 ppm) 1 bottle each (14 mL), kit for crop *5 |
| Main consumables | S040 (sensor), Y041 (5000 ppm standard solution), Y042 (300 ppm standard solution) |
＊1 Measurement is possible from 0.05 ml or more by using sampling sheet B. (Please close the lid before measurement.) Use a different sampling sheet and lid for samples containing fine particles.)
＊2 Repeated repeatability is indicated when the same standard solution is measured after calibration with the standard solution.
＊3 Equivalent to IP67: No failure after 30 minutes of penetration at a depth of 1m. Cannot be used underwater.
＊4 Battery life is about 1/3 when backlight is on, and backlight is on for about 20 seconds.
＊5 Kit for crops: 4 syringe, 1 washing bottle (250 ml), 1 stennel, 3 medicine cups, a simple manual, and a carrying case.
