SUMMARY

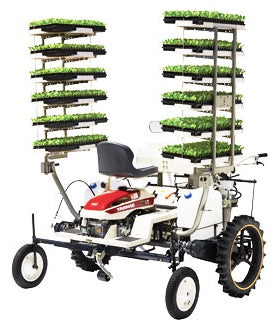

YANMAR Lettuce Transplanter PH4R-LT is a riding type transplanter.
The YANMAR Lettuce Transplanter PH4R-LT transplants 4 rows on 1 ridge in zigzag pattern.
This Lettuce Transplanter PH4R-LT transplants on both flat and round ridges.
WORKABILITY
The YANMAR Lettuce Transplanter PH4R-LT plants 4 rows on one way in zigzag pattern. It reduces a lot of labor operated by one person.
The YANMAR Lettuce Transplanter PH4R-LT has a watering function as a standard feature. The Lettuce Transplanter PH4R-LT waters while transplanting. It activates the seedlings and reduces labors. The amount of water can be adjusted in 3 levels (6, 7 and 9 cc) . (The 20L of tank is not included.)
A sensor on the front frame notifies when it reaches to the end of the ridge by a warning buzzer.
The Lettuce Transplanter PH4R-LT also has a rearview mirror.
The Lettuce Transplanter PH4R-LT has planting parts that open horizontally. After transplanting seedlings, this transplanter covers the soil by rollers stably.
Sensors at the soil covering rollers control the horizontal level automatically parallel to the ridges.
The height of the two of the planting parts at outside can be adjusted according to the shape of a ridge. By adjusting the heights, the Lettuce Transplanter PH4R-LT can transplants seedlings even on the round shaped ridge at the fixed planting depth.
The Lettuce Transplanter PH4R-LT can load 13 pieces of trays maximum. The Lettuce Transplanter PH4R-LT can transplant consecutively 200m without supplying trays.
OPERABILITY
The Lettuce Transplanter PH4R-LT is a riding type transplanter. Just supplying seedlings to rotary pots from the seat, the Lettuce Transplanter PH4R-LT transplants automatically.
The Lettuce Transplanter PH4R-LT has levers around the handle such as main clutch lever, side clutch pedal, accelerator lever, planting depth adjustment lever and etc. The levers are controlled to change the planting depth or direction while checking the planting conditions.
RIDGE SHAPE
OPTIONS
We have a variety of option devices designed for Lettuce Transplanter PH4R-LT series. Please ask us for more information.
SPECIFICATIONS
| Model name | YANMAR Lettuce Transplanter PH4R-LT | ||
|---|---|---|---|
| Model number | PH4R | ||
| Type | LT (lettuce, 4 rows on 1 ridge) | ||
| Dimension | Length (mm) | 2060 | |
| Width (mm) | 1650 | ||
| Height (mm) | 2000 | ||
| Weight (kg) | 280 | ||
| Engine | Engine model | FJ100G | |
| Type | Air-cooling 4 cycle engine (OHV) | ||
| Total engine displacement (L (cc) ) | 0.098 (98) | ||
| Output / Rotational speed (kW (PS) /rpm) |
1.5 (2.1) /1700 | ||
| Maximum output (kW (PS) ) |
2.4 (3.2) | ||
| Fuel | Automobile lead-free gasoline | ||
| Fuel tank capacity (L) | 1.8 | ||
| Starting method | Recoil starter | ||
| Driving | Wheel | Front (mm) | Rubber wheel 370 |
| Rear (mm) | Blowout-free tire 620 | ||
| Tread (mm) | 1450 - 1750 | ||
| The number of shift steps | Forward 2, backward 1 | ||
| Body up/down control | Oil pressuring automatic following | ||
| Body horizontal level control | Oil pressuring automatic following | ||
| Inclined angle value (degree) | Left and right 5 | ||
| Planting | The number of planting rows | 4 (zigzag planting) | |
| Planting row distance (mm) | 270 | ||
| Planting distance (mm) | 280 , 300 , 340 | ||
| Ridge height (mm) | 100 - 300 | ||
| Devices | Parking brake | YES | |
| Side clutch | YES | ||
| Seat | YES (one person) | ||
| Watering device | YES (a tank is not included.) | ||
| Ridge end sensor | YES | ||
| Operating efficiency (hour/10a) | 2.5 - 3.5 | ||
| The number of trays | 13 | ||
| Vegetable | Lettuce | ||
| Seedling type | Seedlings grown in cell trays | ||
