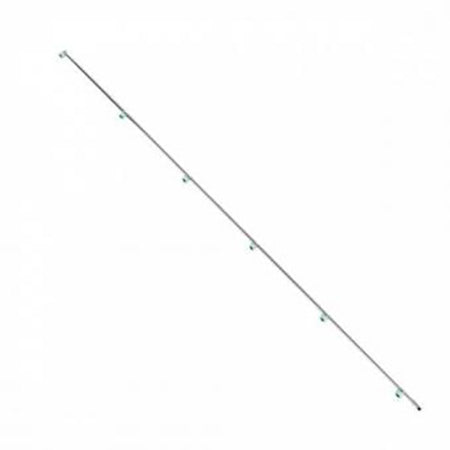

SUMMARY
This product produces a 80° flat fan with minimal drift. High spraying pressure enables uniform distribution and secure attachment. Also, the counterforce created by the pressure reduces the workload of the person operating.
FEATURES
- UKIAGARI-(Low-Drift)Boom Sprayer
- To save pesticides
- Drift-reducing
- 33cm spacing
SPECIFICATIONS
| Nozzle # | SV-20-80C |
|---|---|
| Average Drop Size (μm) | 130 (1.5MPa) |
| Pressure Range (MPa) | 1.0 to 1.5 |
| Code No. | 12 51 33 |
|---|---|
| Product Name | Soft Mist Spray Nozzle 6-nozzles |
| Press | 12.3 l/min (1.5MPa) |
| Coverage | approx. 205cm |
| Length/Weight | 174cm / 440g |
| Adapter | G1/4 |
# Coverage as of 30 cm from nozzle head.
