SUMMARY
Produces an air-assisted, 110°flat fan.Minimal drift. A special feature of this nozzle is its capability of spraying small amounts (25?`50L?^10a).
FEATURES
- Pesticide spray nozzle for Power Sprayers
- To save pesticides
- Equable spraying
SPECIFICATIONS
| Nozzle # | N-KA-055SB |
|---|---|
| Average Drop Size (μm) | 750 (0.7MPa) |
| Pressure Range (MPa) | 0.5 to 1.0 |
| Code No. | 15 22 31 |
|---|---|

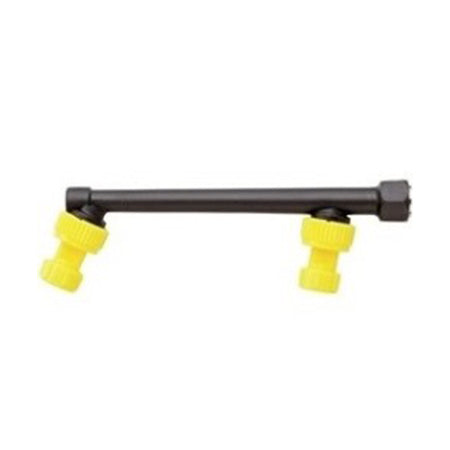

| Product Name | Round Nozzle 50 for Power Sprayers P-2-nozzles |
| Press |
0.84 l/min (0.7MPa) 1.02 l/min (1.0MPa) |
| Length / Weight | 18cm / 49g |
| Coverage | Approx 100cm |
| Adapter | G1/4 |
# Coverage as of 30 cm from nozzle head
