SUMMARY
Produces an air-assisted, 110°flat fan.Minimal drift. A special feature of this nozzle is its capability of spraying small amounts (50 to 100 liters per 1000m2).
FEATURES
- Pesticide spray nozzle for Power Sprayers
- To save pesticides
- Drift-reducing
SPECIFICATIONS
| Nozzle # | N-KA-8G |
|---|---|
| Average Drop Size (μm) | 630 (0.7MPa) |
| Pressure Range (MPa) | 0.5 to 1.0 |
| Code No. | 15 23 36 |
|---|---|

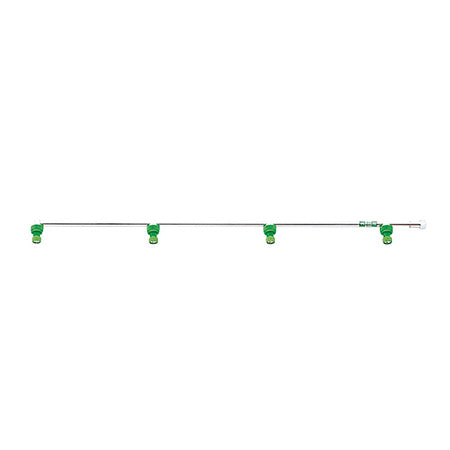

| Product Name | Round Nozzle 100 for Power Sprayers 4 nozzles |
| Press |
3.00 l/min (0.7MPa) 3.60 l/min (1.0MPa) |
| Coverage | 149cm |
| Length/Weight | 78cm / 250g |
| Adapter | G1/4 |
# Coverage as of 30 cm from nozzle head
