SUMMARY
Produces an air-assisted, 110°flat fan. Minimal drift. A special feature of this nozzle is its capability of spraying small amounts (25 to 50L/10a).
FEATURES
- Pesticide spray nozzle for Power Sprayers
- To save pesticides
- Equable spraying
SPECIFICATIONS
| Nozzle # | N-KA-8G |
|---|---|
| Average Drop Size (μm) | 630 (0.7MPa) |
| Pressure Range (MPa) | 0.5 to 1.0 |
| Code No. | 15 23 31 |
|---|---|

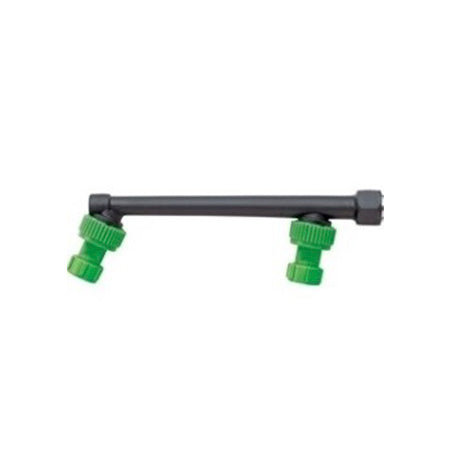

| Product Name | Round Nozzle 100 for Power Sprayers P-2-nozzles |
| Press | 1.50 l/min (0.7MPa) |
| Length / Weight | 18cm / 49g |
| Coverage | Approx. 100cm |
| Adapter | G1/4 |
# Coverage as of 30 cm from nozzle head
