SUMMARY

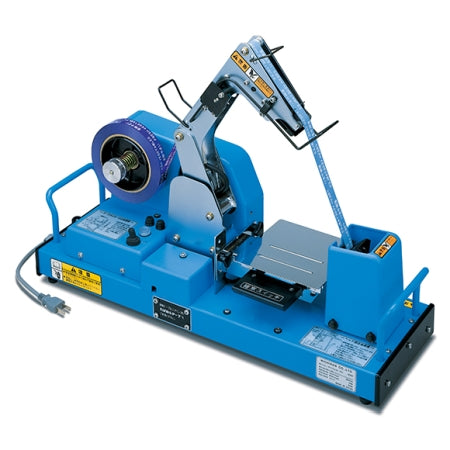

The TABANERA 5000-V is an electric vegetable binding machine for produce such as spinach, leeks, green onions and asparagus.
- Maximum binding diameter: approx. Ø140 mm
- Power supply: AC100V, 50/60 Hz
- Two units can be linked for simultaneous two-point binding
KEY FEATURES
- Electric vegetable binding machine
- Suitable for spinach, leeks, green onions, asparagus and similar bundled produce
- Protective guard for safer operation
- Maximum binding diameter: approximately Ø140 mm, stepless adjustment
- Binding cycle: 0.80 sec at 60 Hz / 0.96 sec at 50 Hz
- Compatible tape width: 15–30 mm
- Supports tape rolls up to 200 m long
- Two machines can be linked for simultaneous two-point binding
BEFORE YOU ORDER
- Power: AC100V, 50/60 Hz. If your local voltage is above 100V, a suitable step-down transformer is required.
- Tape: TABANERA-compatible binding tape is required and sold separately.
- Foot switch: The 5000-V can be used without a foot switch. An optional foot switch is available when hands-free activation is preferred.
TAPE COMPATIBILITY
Use TABANERA-compatible binding tape between 15 and 30 mm wide, with a roll length of up to 200 m.
Important: Nichiban No.540 bag-sealing tape for BS-series bag sealers is not compatible with the TABANERA 5000-V.
View compatible 20 mm TABANERA binding tape. Tape availability may vary.
SINGLE / DUAL OPERATION & OPTIONS
The 5000-V can be operated as a single machine. For long produce that needs to be secured at two positions, two 5000-V units can be linked with a relay cable and operated together.
- Remote Foot Switch — keeps both hands free for holding and positioning produce.
- Relay Cable — connects two 5000-V machines for simultaneous two-point binding.
-
Dual 5000-V Set — two machines with relay cable and foot switch.
VIDEO / HOW TO USE
SPECIFICATIONS
| Model Name | 5000-V |
|---|---|
| Dimensions | 600 × 192 × 445 mm |
| Weight | Approx. 12 kg |
| Power Supply | AC100V, 50/60 Hz |
| Rated Power Consumption | 50 W |
| Power Cord | 2 m |
| Fuse | 100V, 3A |
| Binding Cycle | 60 Hz: 0.80 sec / cycle 50 Hz: 0.96 sec / cycle |
| Maximum Binding Diameter | Ø140 mm, stepless adjustment |
| Compatible Tape Width | 15–30 mm |
| Maximum Tape Roll Length | Up to 200 m |
FAQ
Can I use the 5000-V in a country with 220V, 230V or 240V power?
The machine itself is AC100V. If your local voltage is above 100V, use a suitable step-down transformer that matches your local power supply.
Does the 5000-V require a foot switch?
No. The machine can be used without a foot switch. The optional foot switch is useful when you want both hands free to hold and align produce.
Can I connect two 5000-V machines?
Yes. Two machines can be linked with the dedicated relay cable for simultaneous two-point binding.
Which tape should I use?
Use TABANERA-compatible binding tape between 15 and 30 mm wide, up to 200 m per roll. Do not use Nichiban No.540 bag-sealing tape for BS-series bag sealers.
Is an English instruction video available?
Yes. Please see the instruction video above. If you need help confirming setup, voltage or compatible accessories before ordering, contact Japan Agri Trading.
