SUMMARY
This Full Kit includes a 100 m Sumirain 50 irrigation tube and the main accessories used with it. Sumirain 50 is designed for wide, gentle, rain-like irrigation with a maximum irrigation width of up to 20 m.
Important: This product is Sumirain 50. It is not Sumirain 50H-200 shown on the manufacturer's international website. The specifications on this page apply to Sumirain 50.
BEFORE YOU BUY
For best performance, use Sumirain 50 within the specified pressure range and with sufficient water flow. Irrigation width may vary depending on pressure, flow and installation conditions.
- Operating pressure: 0.10–0.25 MPa (about 1.0–2.5 bar / 14.5–36.3 psi)
- Flow rate: 2.2–3.4 L/min·m depending on pressure

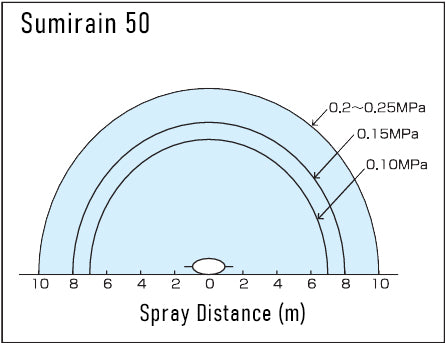

- Maximum irrigation width: up to 20 m
- Uniform irrigation length: up to 100 m
Filtration: An 80-mesh-or-finer filter is recommended on the water-supply line to help prevent clogging. If your irrigation system already has suitable filtration, no additional filter is needed.
The included inlet nipple uses a 50A tapered male pipe thread. Depending on your local piping standard, a suitable adapter may be required.
If you are unsure about compatibility, please contact us before ordering.

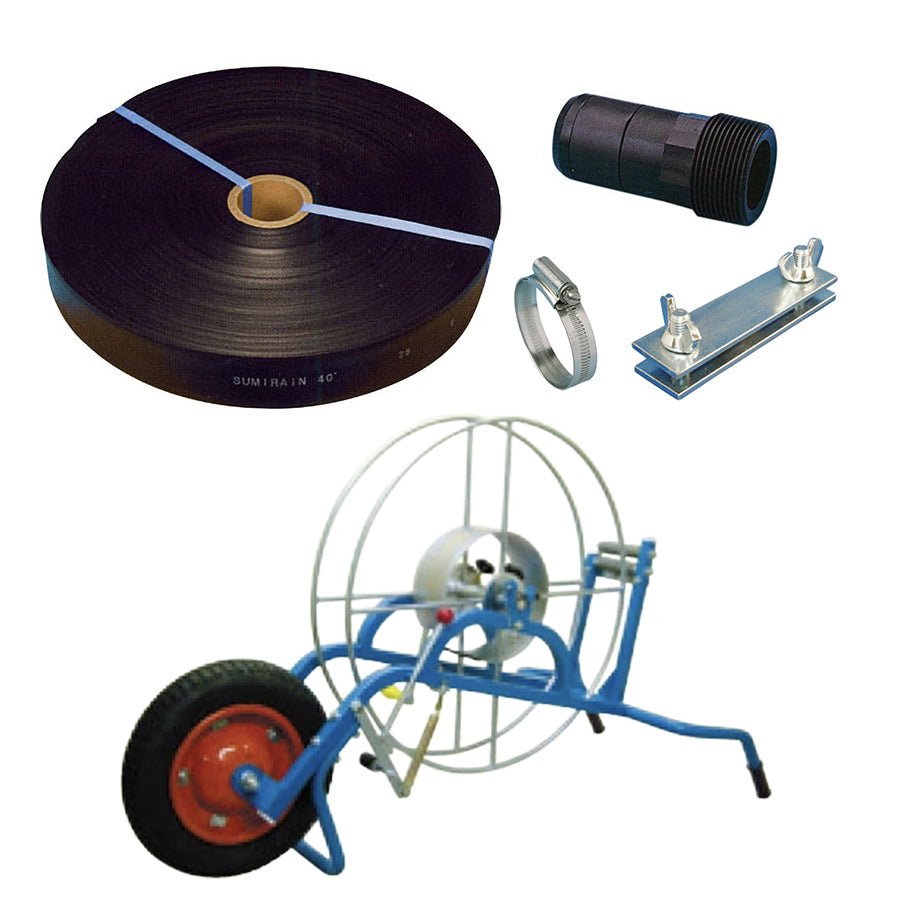

SET CONTENTS

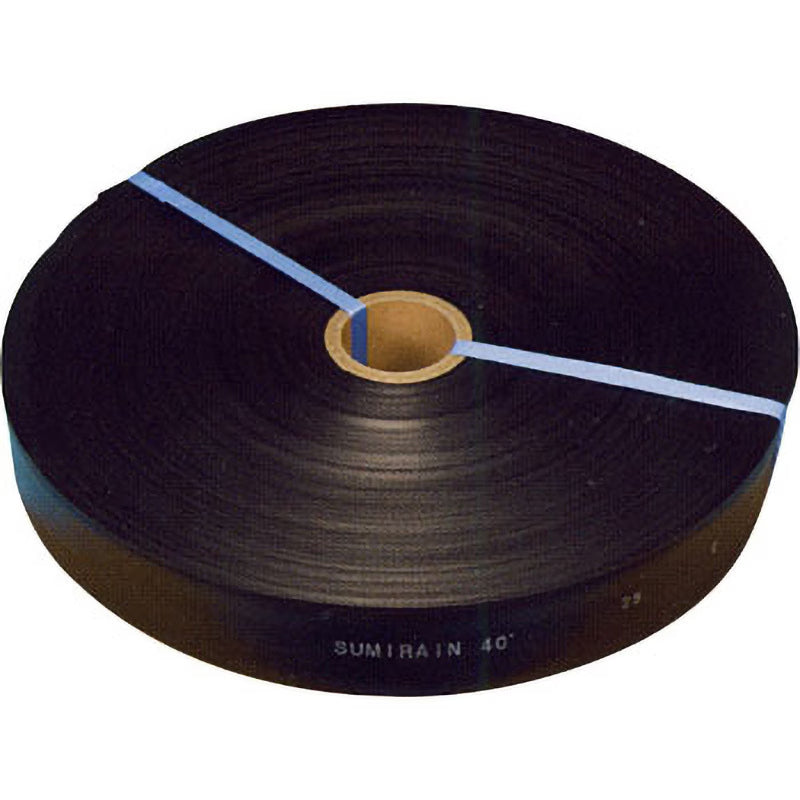

- Sumirain 50 – 100 m roll
- Dedicated Sumirain 50 inlet nipple
- Sumirain stopper
- Securing band(s) for the tube/fitting
- Sumirain winder
Water source, supply piping and any locally required adapter are not included.
PRESSURE & WATER FLOW
| Operating Pressure | Flow Rate per Meter | Approx. Discharge for 100 m* |
|---|---|---|
| 0.10 MPa / 1.0 bar / 14.5 psi | 2.2 L/min·m | 220 L/min (about 58 US gpm) |
| 0.15 MPa / 1.5 bar / 21.8 psi | 2.7 L/min·m | 270 L/min (about 71 US gpm) |
| 0.20 MPa / 2.0 bar / 29.0 psi | 3.1 L/min·m | 310 L/min (about 82 US gpm) |
| 0.25 MPa / 2.5 bar / 36.3 psi | 3.4 L/min·m | 340 L/min (about 90 US gpm) |
*100 m discharge figures are simple calculations based on the manufacturer's published flow rate per meter. Actual system requirements vary with pressure loss, elevation and piping conditions.
FEATURES
- Maximum irrigation width: up to 20 m
- Uniform irrigation along up to 100 m of tube

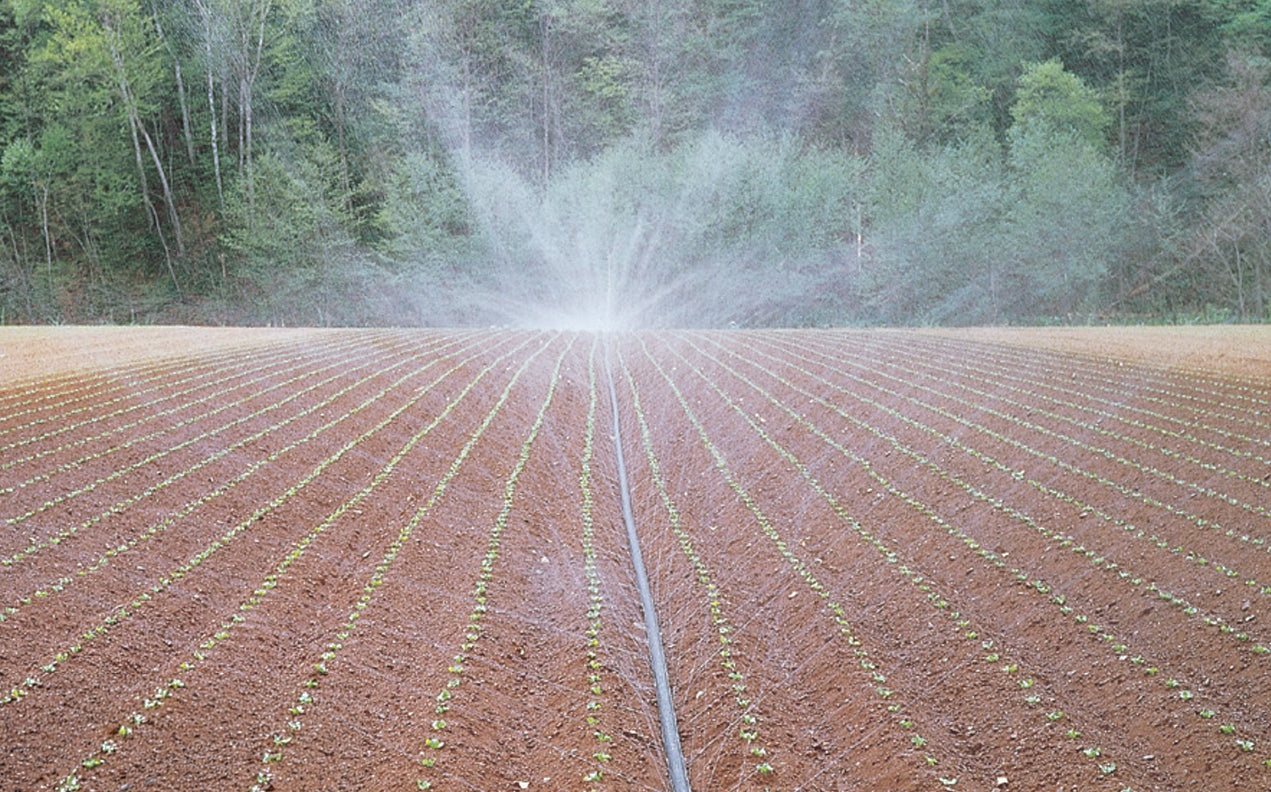

- Soft, rain-like spray for gentle crop watering
- Reinforced special black polyethylene construction
- Suitable for open-field vegetables and turf applications
VIDEO
SPECIFICATIONS
| Model | Sumirain 50 |
|---|---|
| Roll Length | 100 m |
| Equivalent Hose Diameter | 52 mm |
| Flattened Width | 92 mm |
| Approx. Tube Weight | 14 kg / 100 m |
| Operating Pressure Range | 0.10–0.25 MPa |
| Maximum Irrigation Width | Up to 20 m |
| Flow Rate | 2.2–3.4 L/min·m depending on pressure |
| Uniform Irrigation Length | Up to 100 m |
| Recommended Filtration | 80 mesh or finer |
| Included Inlet Nipple | 50A tapered male pipe thread |
| Material | Reinforced special black polyethylene |
