SUMIKA AGROTECH SumiSoaker Irrigation Tube Mark II Full Kit

SUMMARY

This Full Kit combines a 100 m Sumisansui Mark II irrigation tube with the main connection and winding accessories used with it.

Mark II operates at 0.02–0.08 MPa, provides irrigation width of up to 5 m, and is designed for uniform irrigation along up to 100 m of tube.

Important: The irrigation tube in this kit is Sumisansui Mark II, SKU WB1016. It is not WB1132 shown on the manufacturer's international website. The specifications on this page apply to WB1016.

BEFORE YOU BUY

For best performance, use Mark II within the specified pressure range and with sufficient water flow. Irrigation width may vary depending on pressure, flow and installation conditions.

• Operating pressure: 0.02–0.08 MPa (about 0.2–0.8 bar / 2.9–11.6 psi)
• Maximum irrigation width: up to 5 m
• Maximum published flow rate: up to 0.48 L/min·m
• Uniform irrigation length: up to 100 m

Filtration: An 80-mesh-or-finer filter is recommended on the water-supply line to help prevent clogging. If your irrigation system already has suitable filtration, no additional filter is needed.

The included One-touch Nipple 20 connects to a 20A PVC fitting. Depending on your local piping standard, a suitable adapter may be required.

If you are unsure about compatibility, please contact us before ordering.

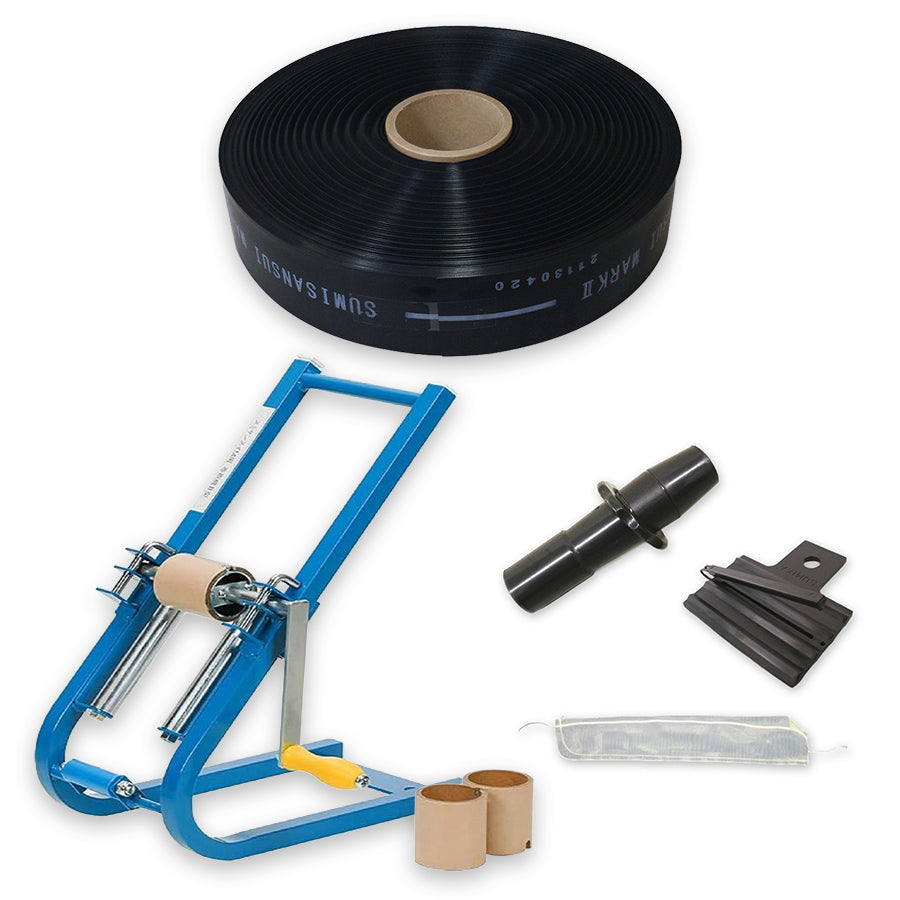

SET CONTENTS

• Sumisansui Mark II – 100 m roll (WB1016)
• One-touch Nipple 20 / inlet fitting
• One-touch stopper
• Tube filter
• Type II Winder
• Three paper cores for winding

Water source, supply piping and any locally required adapter are not included.

FEATURES

• Low-pressure operation: 0.02–0.08 MPa
• Maximum irrigation width: up to 5 m
• Uniform irrigation along up to 100 m of tube
• Soft, rain-like spray with less soil splash
• Special black polyethylene for durability
• Dedicated Type II Winder for easier winding and storage

VIDEO

SPECIFICATIONS
