SUMMARY

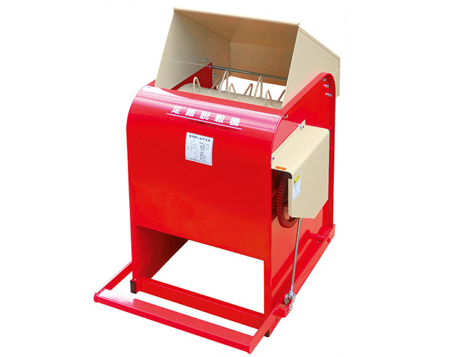

The SASAGAWA TB-450 is a compact foot-operated threshing machine with a heavy-duty φ5.3 mm tough blade. It is designed for simple threshing of rice, buckwheat and wheat, and the stronger blade specification is especially useful when threshing beans.
No electric motor is required. Standard processing capacity is approximately 60 kg/hour.
FEATURES
- Foot-operated: No electric motor is required.
- For rice, buckwheat and wheat: Suitable for small-scale manual threshing of these grains.

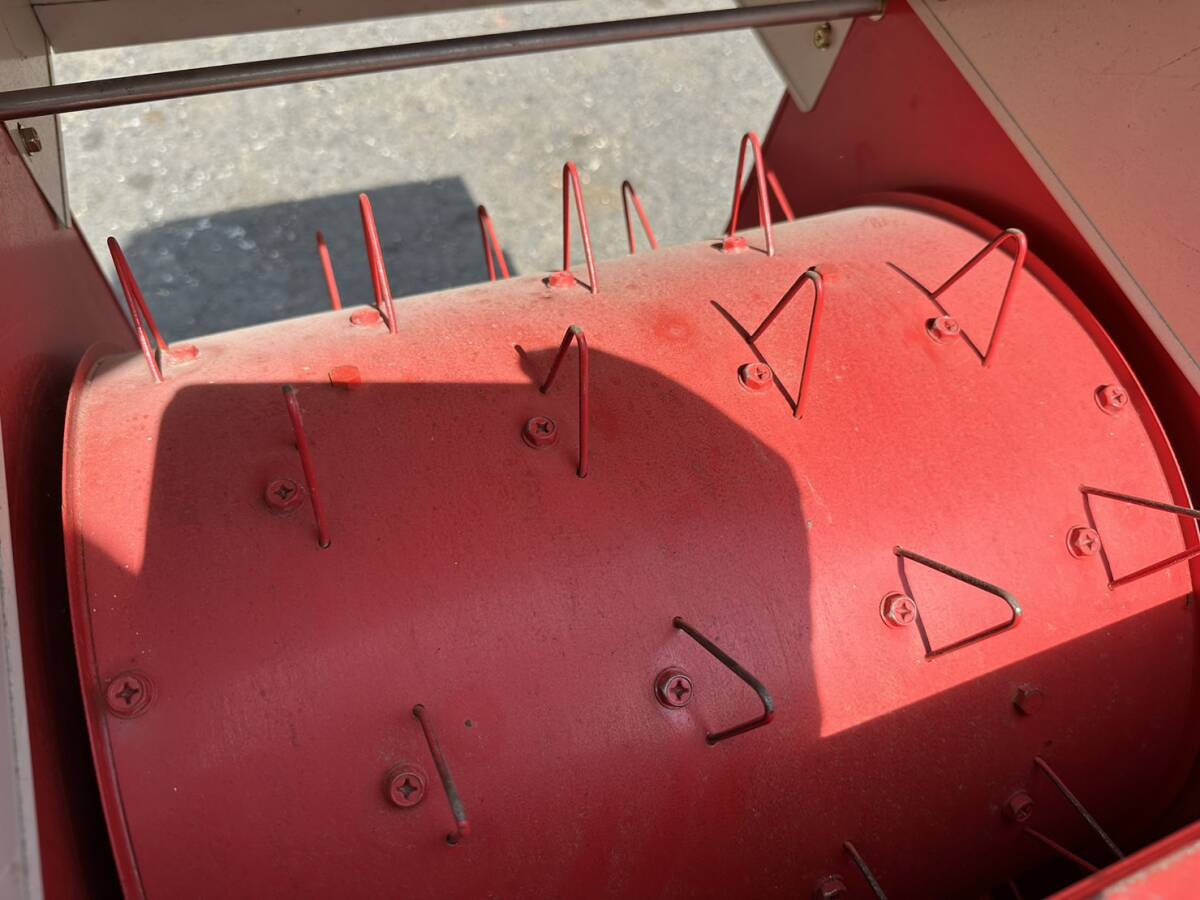

- Heavy-duty tough blade: The TB-450 uses φ5.3 mm threshing teeth, compared with φ2.6 mm on the general FS-410 model.
- Useful for beans: The thicker, stronger teeth are designed to provide more effective threshing of beans.
- Scattering-prevention cover: Helps keep threshing work cleaner.
NOTES
- Please be sure to lubricate the machine before use.
SPECIFICATIONS
| Model Name | TB-450 |
|---|---|
| Length (mm) | 800 |
| Width (mm) | 500 |
| Height (mm) | 850 |
| Weight (kg) | 31 |
| Handling width (mm) | 370 |
| Blade teeth | φ5.3mm Tough blade |
| Efficiency | 60kg/hour |
| Wind separation | None |
PACKING INFORMATION
| Packing Dimensions (mm) | 64 x 56 x 66 |
|---|---|
| Volumetric Weight (kg) | 48 |
