SUMMARY

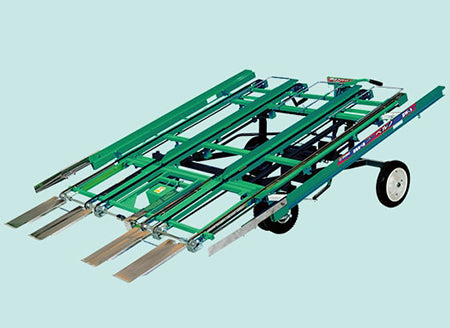

It is a machine for arranging seedling boxes.
In human work, it is a heavy labor that requires you to bend down and line up many times, which puts a strain on your lower back.
With this machine, all you have to do is set the seedling tray while standing. The machine will automatically line up the trays.
VIDEO
FEATURES
Nursery trays are lined up without bending your hips
You can work comfortably without back pain.
Just set the seedling box on the machine. The machine will automatically move backward and line up the seedling boxes.
It will contribute to productivity improvement.
For example, in the case of 20,000 nursery trays and 1000 trays arranged at one time,
With this machine, you can reduce your working time from 60 minutes to 40 minutes.
Where the required number of people was eight, three people can cover it.
Furthermore, the work efficiency of 10 minutes has been improved by 40-70 trays compared to the conventional product.
Speed controller
It can be adjusted from a low speed that can be started safely to a high speed that is highly efficient.
Battery power
Because it is electric, you can work quietly and cleanly. It's easy to charge and replace the battery.
Slide mechanism
The conveyor section slides left and right. It is easy to adjust when aligning.
Double steering
The steering rod is double.
It is easier to handle and easier to move.
Foldable
The conveyor part can be folded, making it convenient for moving and storing.
SPECIFICATIONS
| Model Number | BW-2A |
|---|---|
| Dimensions |
In use: 2540 x 1270 x 840 mm In storage: 1780 x 1270 x 840 mm |
| Weight | 115 kg |
| Efficiency |
600-1200 trays / h at continuous work |
| Power supply | Automotive battery 55B24R |
| Power | DC12V 77W DC motor |
| Slide adjustment width | Left and right 13 cm each |
MEDIA
It was also featured in the Japan Agricultural News.
It will be a solution to the decrease in the number of farmers and the aging of the population, and can contribute to the expansion of the scale of agriculture.
