SUMMARY
GW50 is useful for inducing and budding work at high altitudes.
FEATURES

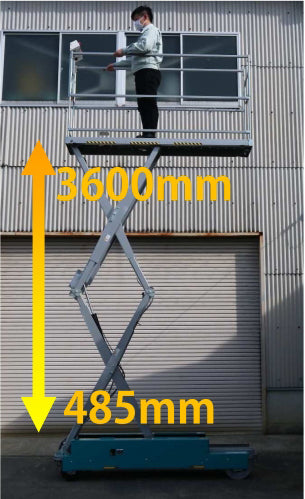

- The work platform can be raised and lowered in a range of 485 to 3600 mm.
- The moving wheels can be moved in and out with a dial on the bottom of the control box in a comfortable standing position.
- When the moving wheels are out, the machine body comes out vertically, making it easier to align the machine with the rails.
- Equipped with a high-performance battery and a charger with an overcharge prevention function. (AC100V use)
- Corners are reduced to prevent damage to the hot-air duct.
- 24V power supply can now be obtained from the operation box.
VIDEO
SPECIFICATIONS
| Model Name | GW-50 |
|---|---|
| Length (mm) | 1970 |
| Width (mm) | 770 |
| Height (mm) | 1640-4755 |
| Weight (kg) | 420 |
| Battery | 24V (12V x 2) |
| Rail diameter | φ 48.6-51 |
| Rail width (mm) | 600 or 550 |
