SUMMARY

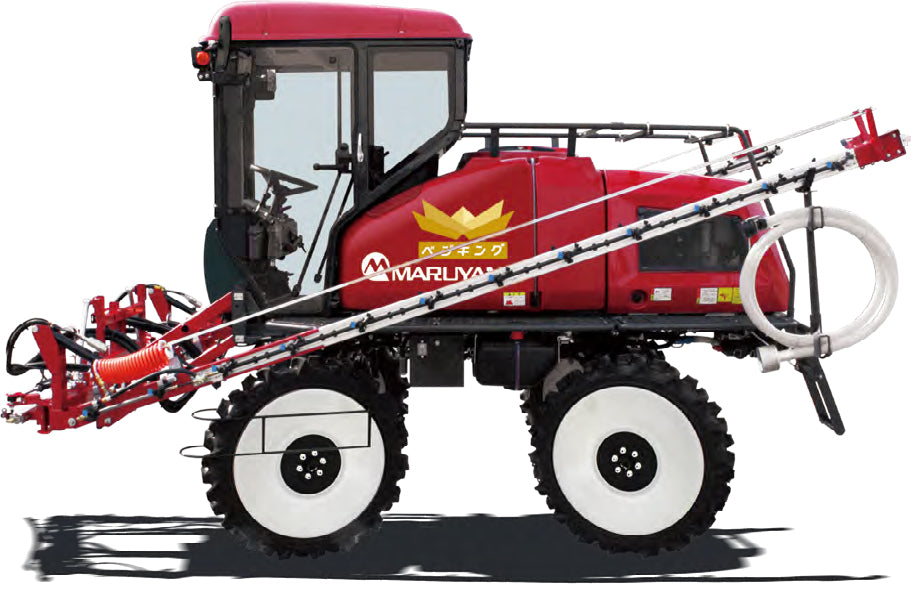

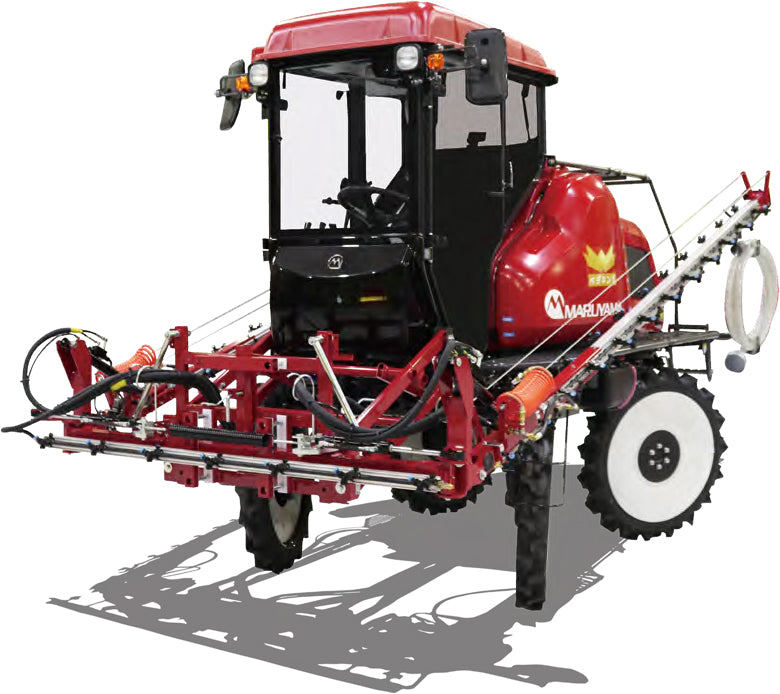

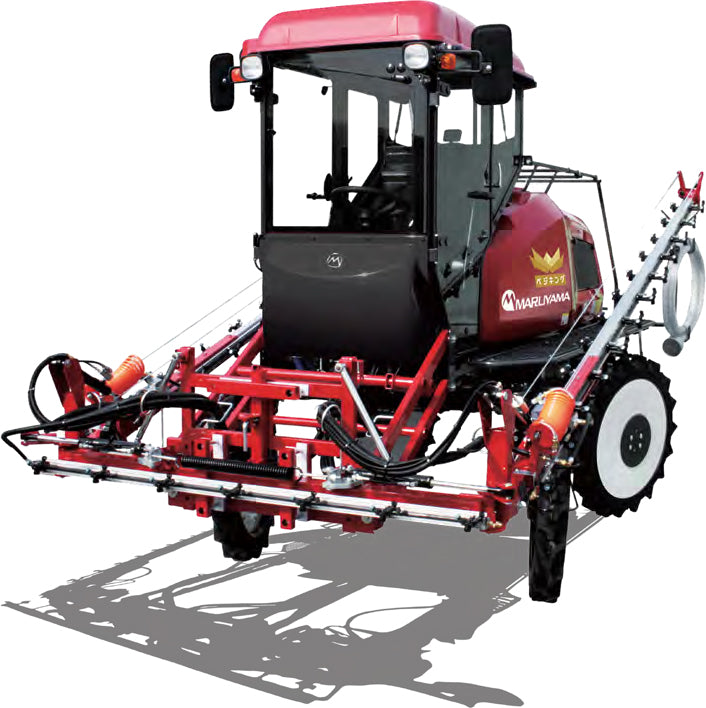

A cabin-type high-clearance boom sprayer designed for efficient chemical application in paddy fields and upland crops. The BSA-651 / BSA-951 is available with a 600L or 850L chemical tank capacity depending on the model.
FEATURES
- Mid-tank layout: The chemical tank is positioned near the center of the machine, helping maintain a stable front-to-rear weight balance even as the tank volume changes during operation.
- HST (stepless transmission): Forward/reverse switching and speed adjustment can be handled smoothly by lever operation without clutch work.
- Front work light and washer-equipped wiper: Designed to support visibility and operator convenience during field work.
- Standard water supply system: Equipped as standard with a 5-linked water supply system.
- Walk-through floor and rear access step: A foldable rear step inside the cabin, combined with Maruyama’s original walk-through floor layout, helps make entry and exit easier and improves overall usability.
- 2WS / 4WS switching: The steering mode can be switched between 2WS and 4WS depending on field conditions and work requirements.
- User-focused boom system: The boom uses hydraulic cylinders for smooth operation except for the sliding section, and the spraying width can be adjusted freely from 9.9 m to 15.9 m.
- “Pitatto Arm” boom leveling system: Helps minimize boom shake by responding to uneven ground, vehicle tilt, and rebound during operation.
- Panorama wide cabin: The cabin layout has been redesigned to provide more legroom and a more spacious, comfortable working environment than previous models.
- 7-inch Multi Navi: Automatically controls the application rate according to the preset amount per 10a, adjusting the pressure valve automatically to maintain consistent spraying even when the boom width changes or one-sided spraying is used.
- Standard nozzles: Ceramic cone nozzle φ1.6, Rice Shower Nozzle 25, and Crab-eye foam nozzle φ1.6 with a 3-way switching nozzle.
- Air conditioner: Equipped with a high-performance air conditioning system for comfortable work in all seasons, with six air outlets inside the cabin.
- Tank capacity options: Available in 600L (BSA-651) or 850L (BSA-951) depending on the selected model.
SPECIFICATIONS
| BSA-651 | BSA-951 | |
|---|---|---|
| Tread Width | 1500 mm | |
| Overall Dimensions (L × W × H) | 4120 × 2150 × 2560 mm | |
| Wheelbase | 1500 mm | |
| Effective Ground Clearance | 800 mm | |
| Dry Weight | Varies depending on engine specification | |
| Engine | KUBOTA or YANMAR | |
| Engine Type | Vertical water-cooled 4-cycle 3-cylinder diesel | |
| Rated Output | Approx. 15.2–15.4 kW / 2600 rpm | |
| Fuel Tank Capacity | 20 L | |
| Starting System | Cell starter | |
| Drive System | 4WD | |
| Steering | 4WS with 2WS / 4WS switching | |
| Steering Type | Full hydraulic power steering | |
| Transmission | HST (stepless) + 2-range sub transmission | |
| Travel Speed | Spraying: 0–4 km/h / Transport: 0–11 km/h | |
| Chemical Tank Capacity | 600 L | 850 L |
| Agitation System | Mechanical propeller | |
| Pump Model | MS1000F | |
| Pump Type | Horizontal 5-piston type | |
| Water Suction Capacity | 100 L/min | |
| Working Pressure | 1.0–2.5 MPa | |
| Multi Navi | Equipped | |
| Boom Type | Electric slide / hydraulic folding and lifting | |
| Number of Boom Sections | 3 | |
| Spray Width | 9.9–15.9 m | |
| Boom Height / Spray Height | 465–1305 mm | |
| Nozzle Output | 74 L/min at 2.0 MPa / 51 L/min at 1.0 MPa | |
| Standard Cabin Equipment | 7-inch display, air conditioner, rear window, room light | |
