Description
SUMMARY

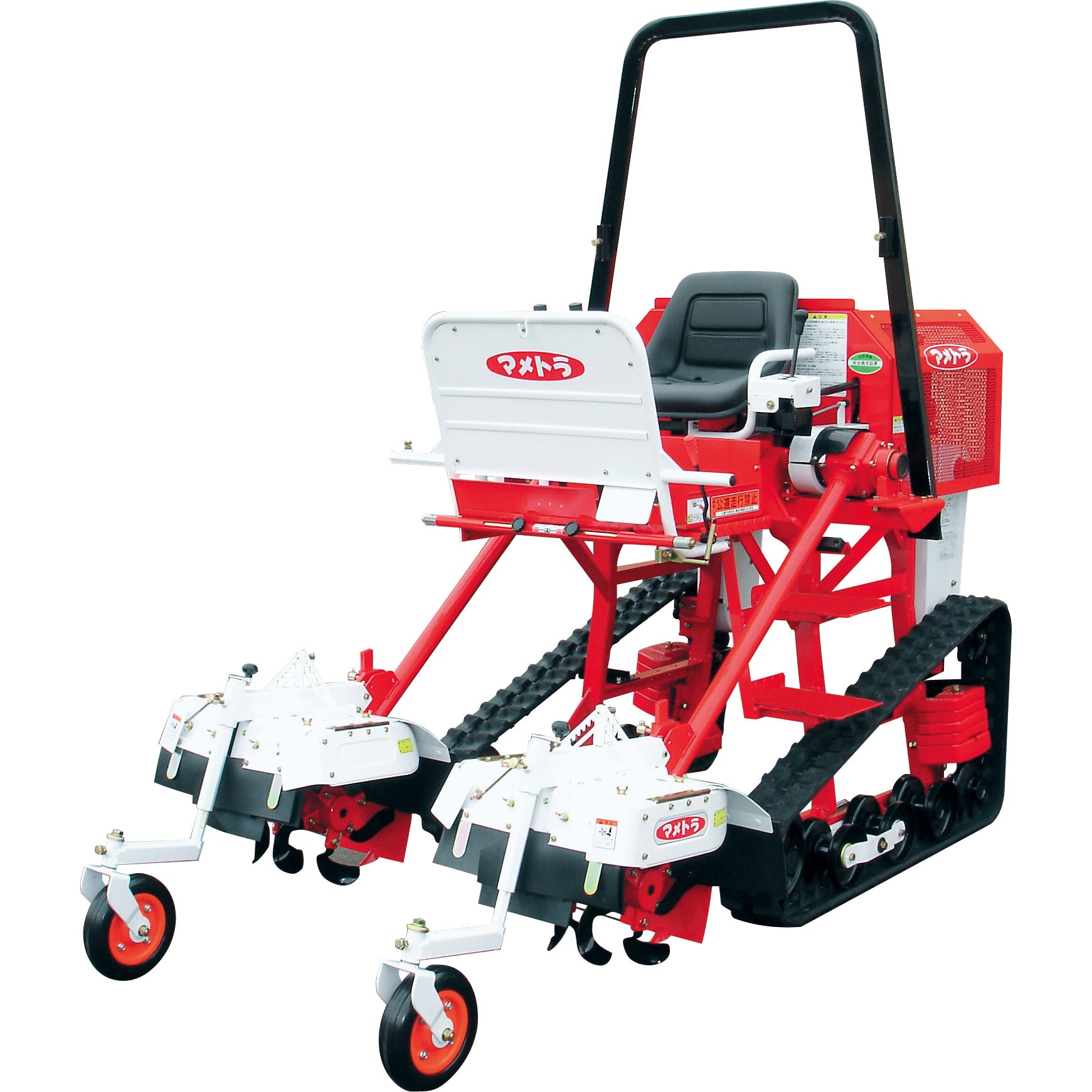

It is an excellent machine that allows you to easily work two ridges (rows) at the same time, such as grooving for planting, soil bed gathering and spraying fertilizer (optional) while riding.
Compared to conventional manual work or work using walking type machines, it is much less fatigue and improved work efficiency.
FEATURES
- You can see work-in-process from the driving position.
- With a high ground clearance and crawler, it is possible to finish the large soil work.
- Driving backward to enter the fields where you cannot be turned.
VIDEO
SPECIFICATIONS
| Model | MSR950N13B | |
|---|---|---|
| Dimensions | Length (mm) | 2,320 |
| Width (mm) | 1,370 | |
| Height (mm) | 2,110 | |
| Weight (kg) | 673 | |
| Engine | Model | GB400LE-303 |
| Type | Air-cooled 4-cycle OHV gasoline | |
| Maximum output/rpm (kW[PS]/rpm) | 9.6[13]/2,000 | |
| Displacement (cc) | 391 | |
| Fuel type | Automotive gasoline | |
| Fuel tank capacity (L) | 6 | |
| Starting method | Cell starter | |
| Driving | Crawler center distance (mm) | 950 |
| Crawler width x ground contact length (mm) | 150 x 1010 | |
| Number of gears | Forward 3, Reverse 1 | |
| Driving speed forward (m/s) | 0.24, 0.33, 0.51 | |
| Driving speed backward (m/s) | 0.2 | |
| Minimum ground clearance (mm) | 915 | |
| Rotary | The number of rows | 2 rows |
| Row distance (mm) | 900, 950, 1000 | |
| Rotary width (mm) | 220/260 (at shipping) | |
| Groove depth (mm) | 450 to 600 | |
| Line markers (optional) | Both left and right | |
| Work efficiency (a/h) | 14.7 to 20 | |
