SUMMARY

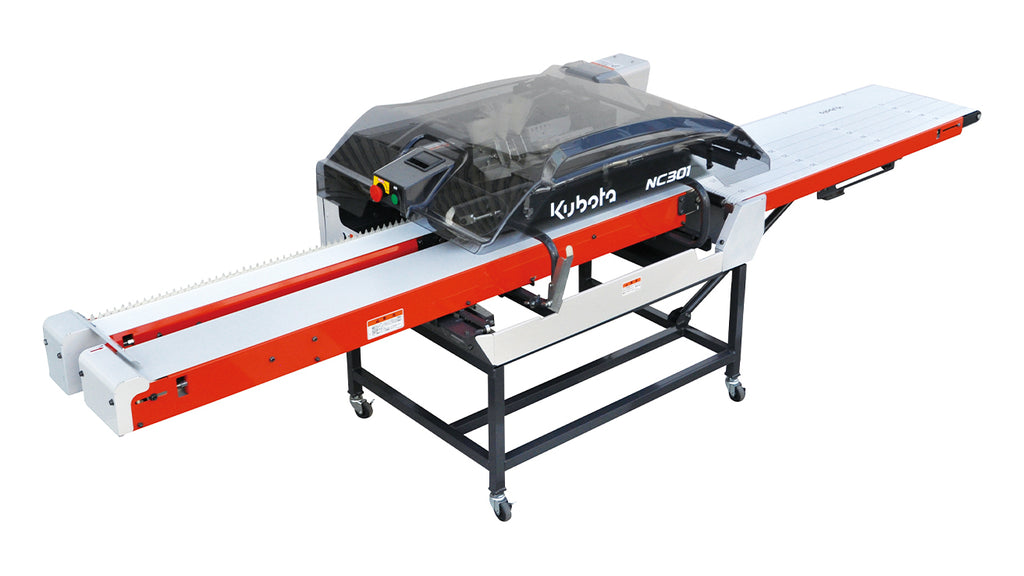

KUBOTA NC301 can easily and efficiently perform root and leaf trimming and preparation by simply placing it on the conveyor.
FEATURES
- Crops up to 500 mm in diameter can be handled.
- Clean alignment with stubble mechanism.
- Roots are cut uniformly.
- Adjustable speed of defoliation blade.
- Equipped with a waste discharge chute.
VIDEO
SPECIFICATIONS
| Model name | NC301 | ||
|---|---|---|---|
| Dimension | Length (mm) | 2830 | |
| Width (mm) | 682 (Max. at work : 884) | ||
| Height (mm) | 846 | ||
| Weight (kg) | 105 | ||
| Power supply (V) | AC100 | ||
| Rated power consumption (W) | 440 (60Hz) | ||
| Electric motor | Main drive motor (W) | 90 | |
| Blade drive motor (W) | 90 | ||
| Crop transport section | Supply belt width (mm) | 150 (White high friction urethane belt) | |
| Stubble belt width (mm) | 85 (white urethane belt with stubble positioning guide) | ||
| Stubble holder belt width (mm) | 60 (Urethane belt with sponge attached) | ||
| Discharge belt width (mm) | 400 (white urethane belt with crop size identification line) | ||
| Conveyor transport speed (cm/sec) | Recommended range : 10 to 23 (non-step) |
||
| Root cutting section | Method | Gear Rotor Pinching and Cutting |
|
| Blade shape | Disk saw blade (150 mm diameter) | ||
| Rotation speed (rpm) | 230 - 520 (linked to conveyor speed) | ||
| Adjustment section | Method | Scraping brush + high-speed rotating urethane blade |
|
| Brush rotation speed (rpm) | 39 - 70 (linked to conveyor speed) | ||
| Blade rotation speed (rpm) | Recommended range : 300 - 900 (non-step) | ||
| Applicable crops | Total crop length (mm) | 180 - 500 | |
| Crop stubble diameter (mm) | Within φ30 | ||
| Root length before cutting (mm) | 10 - 100 | ||
| Crop branching angle | 90° or less | ||
| Adaptation Crop | Spinach (limited to greenhouse-grown vertical varieties), komatsuna, etc. | ||
| Work efficiency (stubble/hour) | Max. 1800 (for 1 crop supplier and 1 finisher) |
||
