SUMMARY
The Iseki binder is designed with the center of gravity positioned close to the center of the machine body, making it easy to balance and provide excellent straight-line movement. This makes it possible to work stably not only in dry fields but also in wet fields.
VIDEO
FEATURES
Engine
Good starting performance
Equipped with an engine that conforms to emission regulations and has good starting performance! The engine can be easily started with light force.
Large-capacity fuel tank
Equipped with a large-capacity 3.6L fuel tank! You can work continuously for a longer period of time with a single refueling.
Mowing speed synchronization
High mowing performance
The pulling speed is synchronized with the work speed, resulting in less jamming and cleaner ejection.
One-Touch Cab Drain
Fuel in the carburetor can be drained with a single touch. This is very convenient before storing.
Puller case open
The puller case can be opened without tools, making it easy to remove and clean rice straw.
Grease nipple
Easy maintenance and improved durability.
Storage stand
Prevents deformation of tires due to long-term storage, so they can be used comfortably next season.
Oil jug & sickle holder
The sickle and oil holder can be stored conveniently, eliminating the need to carry them.

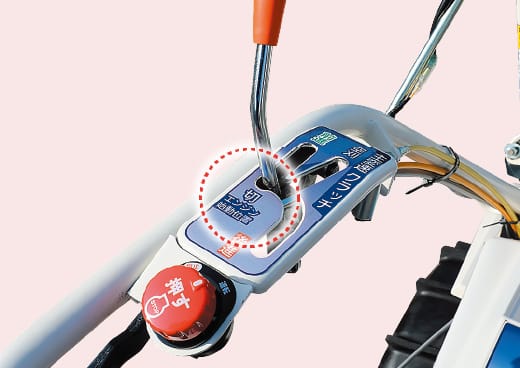

Engine Start Restraint
To prevent sudden starts, the engine will not start unless the main gearshift is in the “off/engine start position”.

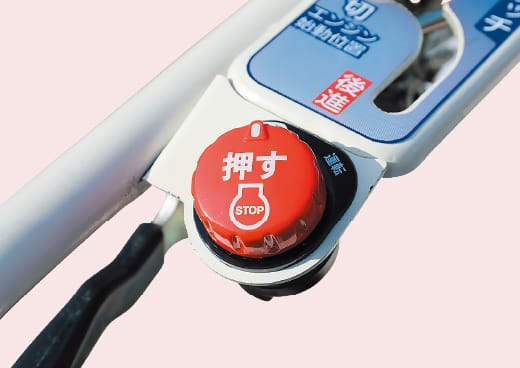

Engine emergency stop switch
The engine stops as soon as the switch is pressed, in case of emergency.
Parking Brake
The parking brake can be easily applied by operating the lever. This makes it safe to stop on a slope.
SPECIFICATIONS
| Model name | RZ125 | ||
| Dimensions | Length (mm) | 1600 | |
| Width (mm) | 575 | ||
| Height (mm) | 1020 | ||
| Weight (kg) | 110 | ||
| Engine | Model name | GB131LN-420 | |
| Type | Air-cooled 4-stroke tilting-type horizontal-shaft OHV gasoline engine | ||
| Total displacement (cc) | 126 | ||
| Output (kw/rpm) | 2.3 / 1650 (max 3.0) | ||
| Fuel used | Unleaded gasoline for automobiles | ||
| Fuel tank capacity (L) | 3.6 | ||
| Starting system | Recoil starter type | ||
| Traveling section | Gear shift system | Gear switching type | |
| Number of gear shift steps (steps) | Forward 3 / Backward 3 | ||
| Tire | Type | Wide Width Low Pressure Tires | |
| Size | 18 x 8.0 - 8 | ||
| Travel speed (at rated engine speed) | Forward (m/s) | 0.64, 0.96, 1.41 | |
| Backward (m/s) | 0.30, 0.45, 0.66 | ||
| Wheel vertical adjustment range (mm) | 0-25 | ||
| Reaping section | Number of mowing strips (strips) | 1 | |
| Blade width (mm) | 200 | ||
| Mowing height range (mm) | 30-50 | ||
| Bundling section | Applicable string type | ISEKI Designated String P.P(1440tex), Jute(550tex x6) | |
| Number of bundle size adjustment steps (steps) | 5 (large to small) | ||
| Adaptation crop | Rice/wheat | ||
| Total length of adaption crop (mm) | 600-1200 | ||
| Adaptability to fall (degree) | Back mowing 85 degrees or less / Mowing 75 degrees or less | ||
| Work efficiency (min/10a) | 68-103 | ||
