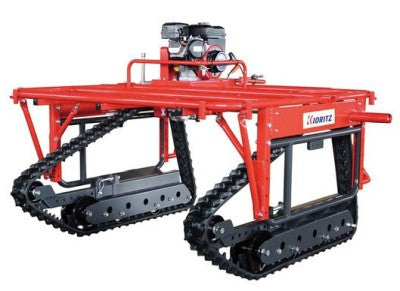

Cross-Ridge Crawler Transport Vehicle crawls over ridges and carries vegetables and crops.
The Cross-Ridge Crawler Transport Vehicle is designed for use in harvest time.
- The tread is adjustable from 1440 to 2390 mm as long as the width of the table.
- The Cross-Ridge Crawler Transport Vehicle has an emergency stop button that stops operation immediately.
|Width (mm)||1670 to 2620|
|Height (mm)||1170 to 1470|
|Dry Weight (kg)||255|
|Maximum Operation Capability (kg)||300|
|Table Length x Width (mm)||1350 x 1440 to 2390|
|Maximum Engine Output (kW)||3|
|Crawling Speed (Forward) (km/h)||1.4 / 3.6|
|Crawling Speed (Backward) (km/h)||1.4 / 2.8|
|Width of Crawler (mm)||110|
|Crawler Tread at Outside (mm)||1260 to 2210|
|Height from the Ground to Bottom of the Table(mm)||
