SUMMARY

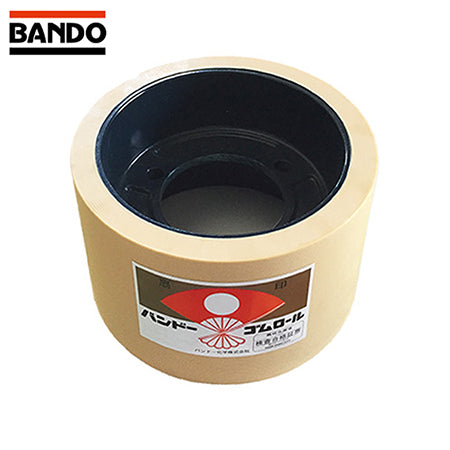

BANDO Rice Hulling Rubber Rollers are made with the optimum hardness suitable for rice hulling.
As a feature of the product, the ability to remove rice husks is very high, and the defective rice caused by hulling can be minimized. It also has excellent durability and lasts a long time.
FEATURES
- Bando White Rollers are recommended for general rice hulling by individual farms
- Excellent durability, long-lasting
- Excellent husking efficiency, with optimal hardness
- Balanced hardness and elasticity, with minimal damage to the rice grains
SPECIFICATIONS
| Roller Type | Width | Outside Dia. | Drum outside dia. (rubber inside dia.) |
|||
|---|---|---|---|---|---|---|
| (inch) | (mm) | (inch) | (mm) | (inch) | (mm) | |
| Integrated Medium 50 | 5.00 | 127.0 | 6.50 | 165.0 | 5.12 | 130.0 |
See BANDO Rubber Rollers / Rice Huller Maker Model chart
BANDO ROLLERS SIZE CHART
| Roller Type | Width | Outside Dia. | Drum outside dia. (rubber inside dia.) |
|||
|---|---|---|---|---|---|---|
| (inch) | (mm) | (inch) | (mm) | (inch) | (mm) | |
| Integrated 100 | 10.00 | 254.0 | 10.00 | 254.0 | 8.03 | 204.0 |
| Integrated Large 60 | 6.00 | 152.4 | 8.74 | 222.0 | 7.13 | 181.0 |
| Integrated Medium 50 | 5.00 | 127.0 | 6.50 | 165.0 | 5.12 | 130.0 |
| Integrated Medium 40 | 4.00 | 101.6 | 6.50 | 165.0 | 5.12 | 130.0 |
| Integrated Medium 30 | 3.00 | 76.2 | 6.50 | 165.0 | 5.12 | 130.0 |
| Integrated New Type 30 | 3.00 | 76.2 | 6.02 | 153.0 | 4.57 | 116.0 |
| Integrated Small 30 | 3.00 | 76.2 | 6.02 | 153.0 | 4.72 | 120.0 |
| Integrated Small 25 | 2.50 | 63.5 | 6.02 | 153.0 | 4.72 | 120.0 |
| Yanmar Diff. Dia. Large 50 | 5.00 | 127.0 | 7.87 | 200.0 | 6.06 | 154.0 |
| Yanmar Diff. Dia. Small 50 | 5.00 | 127.0 | 6.50 | 165.0 | 5.43 | 138.0 |
| Yanmar Automatic Diff. Dia. Large 40 | 4.00 | 101.6 | 7.87 | 200.0 | 6.06 | 154.0 |
| Yanmar Automatic Diff. Dia. Small 40 | 4.00 | 101.6 | 6.50 | 165.0 | 5.43 | 138.0 |
| Yanmar Automatic Diff. Dia. Large 30 | 3.00 | 76.2 | 7.87 | 200.0 | 6.06 | 154.0 |
| Yanmar Automatic Diff. Dia. Small 30 | 3.00 | 76.2 | 6.50 | 165.0 | 5.43 | 138.0 |
| Yanmar Manual Diff. Dia. Large 40 | 4.00 | 101.6 | 7.87 | 200.0 | 6.54 | 166.0 |
| Yanmar Manual Diff. Dia. Small 40 | 4.00 | 101.6 | 6.50 | 165.0 | 5.43 | 138.0 |
| Yanmar Manual Diff. Dia. Large 30 | 3.00 | 76.2 | 7.87 | 200.0 | 6.54 | 166.0 |
| Yanmar Manual Diff. Dia. Small 30 | 3.00 | 76.2 | 6.50 | 165.0 | 5.43 | 138.0 |
| Yanmar Small 25 | 2.50 | 63.5 | 6.02 | 153.0 | 4.57 | 116.0 |
| Yanmar H 25 | 2.50 | 63.5 | 6.02 | 153.0 | 4.92 | 125.0 |
| Satake 80 | 8.00 | 203.2 | 8.74 | 222.0 | 7.24 | 184.0 |
| Satake Diff. Dia. Large 50 | 5.00 | 127.0 | 7.87 | 200.0 | 6.54 | 166.0 |
| Satake Diff. Dia. Small 50 | 5.00 | 127.0 | 6.89 | 175.0 | 5.79 | 147.0 |
| Satake Diff. Dia. Large 40 | 4.00 | 101.6 | 7.87 | 200.0 | 6.54 | 166.0 |
| Satake Diff. Dia. Small 40 | 4.00 | 101.6 | 6.89 | 175.0 | 5.79 | 147.0 |
| Iseki Diff. Dia. Large 50 | 5.00 | 127.0 | 7.87 | 200.0 | 6.54 | 166.0 |
| Iseki Diff. Dia. Small 50 | 5.00 | 127.0 | 6.69 | 170.0 | 5.51 | 140.0 |
| Iseki Diff. Dia. Large 40 | 4.00 | 101.6 | 7.87 | 200.0 | 6.54 | 166.0 |
| Iseki Diff. Dia. Small 40 | 4.00 | 101.6 | 6.69 | 170.0 | 5.51 | 140.0 |
| Iseki Diff. Dia. Large 30 | 3.00 | 76.2 | 7.87 | 200.0 | 6.54 | 166.0 |
| Iseki Diff. Dia. Small 30 | 3.00 | 76.2 | 6.69 | 170.0 | 5.51 | 140.0 |
| Iseki Diff. Dia. Large 25 | 2.50 | 63.5 | 7.72 | 196.0 | 6.54 | 166.0 |
| Iseki Diff. Dia. Small 25 | 2.50 | 63.5 | 6.57 | 167.0 | 5.51 | 140.0 |
| Red Roll Integrated 100 | 10.00 | 254.0 | 10.00 | 254.0 | 8.03 | 204.0 |
| Red Roll Integrated Large 60 | 6.00 | 152.4 | 8.74 | 222.0 | 7.13 | 181.0 |
| Red Roll Integrated Medium 50 | 5.00 | 127.0 | 6.50 | 165.0 | 5.12 | 130.0 |
| Red Roll Integrated Medium 40 | 4.00 | 101.6 | 6.50 | 165.0 | 5.12 | 130.0 |
| Red & White Integrated Pair 100 | 10.00 | 254.0 | 10.00 | 254.0 | 8.03 | 204.0 |
| Red & White Integrated Pair Large 60 | 6.00 | 152.4 | 8.74 | 222.0 | 7.13 | 181.0 |
| Red & White Integrated Pair Medium 50 | 5.00 | 127.0 | 6.50 | 165.0 | 5.12 | 130.0 |
| Red & White Integrated Pair Medium 40 | 4.00 | 101.6 | 6.50 | 165.0 | 5.12 | 130.0 |
