Description
SUMMARY

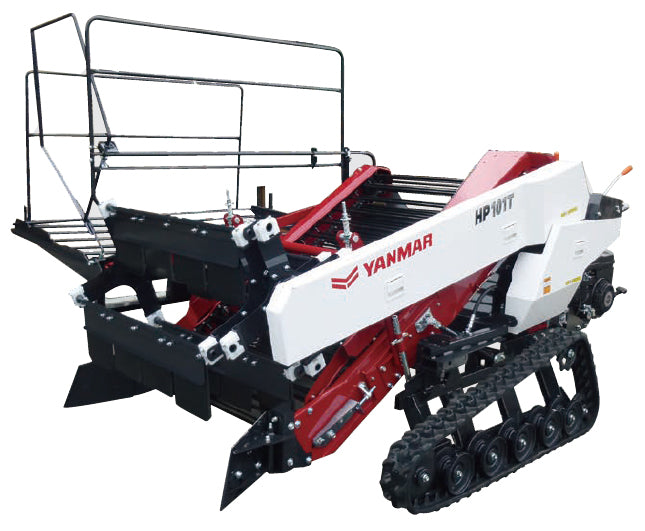

Significantly saves labor in picking up onions after digging.
Increased work speed and improved work efficiency from 0.15 m/s to 0.2 m/s.
Ideal for picking up after digging with walk-behind harvesters.
Mini-container and steel container types are available.
VIDEO
SPECIFICATIONS
Floating mechanism and paddle rubber
Uses Yanmar's unique raking blades.
The floating mechanism and paddle rubber gently pick up onions.
Vibrating conveyor
By vibrating the conveying part, the soil adhering to the picked onions can be removed.
In addition, by adopting a torque limiter as a safety device, the loss time from stop to return has been reduced.
Compact design & crawler
The compact walking type makes it easy to handle even in small fields.
The wide tread makes it possible to work across wide and high ridges.
In addition, it uses a crawler that is excellent in driving straight and allows for stable work.
Adjustable divider width
The divider width can be adjusted in 3 steps: 910mm, 960mm, and 1025mm.
Wide tread specification (HP101T, W, HT101T, WLC)
Because of the wide tread, you can work without stepping on ridges, and the running is stable.
The minimum ground clearance is 100mm higher than the standard specification. Ridge heights up to 350mm are also available.
Holds up to 45 empty containers
The maximum number of empty containers that can be loaded has been increased from 27 in the past to 3 on the container stand and 42 on the auxiliary container stand, for a total of 45.
As a result, work can be done in a 100m long field in one stroke, greatly improving continuous work performance.
In addition, guard pipes and container stoppers firmly hold down the sides of containers, so there is no need to worry about empty containers falling during transportation or work.
Moreover, continuous supply of empty containers is possible. Accommodate onions without interrupting work.
Container discharge
The container containing the onion is discharged on the ridge when it becomes full.
Either one or two discharges can be selected depending on the mounting position of the discharge part.
ADAPTIVE RIDGE SHAPE
HP101T(LC)
HP101T, W (LC)
SPECIFICATIONS
| Model name | HP101T | |||||
|---|---|---|---|---|---|---|
| Type | − | LC | W | WLC | ||
| Dimensions | Length (mm) | 2335 <when retracted: 2175> |
3940 <when retracted: 2915> |
2335 <when retracted: 2175> |
3940 <when retracted: 2915> |
|
| Width (mm) | 2330 |
1430 | 2360 |
1500 | ||
| Height (mm) | 1625 |
2170 <when retracted: 1970> |
1725 |
2270 |
||
| Weight (kg) | 467 | 607 | 481 | 620 | ||
| Engine | Model name | GB131LN-400 | ||||
| Type | Air-cooled 4-stroke gasoline engine | |||||
| Total displacement (L {cc}) | 0.126 {126} | |||||
| Rated output/rotational speed (kW {PS}/rpm) | 2.3 {3.1}/1800 | |||||
| Maximum output (kW {PS}) | 3.0 {4.2} | |||||
| Fuel used | Unleaded gasoline for automobiles | |||||
| Fuel tank capacity (L) | 2.5 | |||||
| Starting method | Recoil starter type | |||||
| Driving part | Crawler | Width x ground length (mm) | 110×1046 | 110×1105 | ||
| Center distance (mm) | 1270 | 1390 | ||||
| Average ground pressure (kPa) | 19.9 | 25.8 | 19.3 | 25.0 | ||
| Swivel system | Side clutch | |||||
| Gear shift system | Gear transmission type | |||||
| Number of gears (steps) | Forward 2, Reverse 1 | |||||
| Working speed | Frontward (m/s) | Low speed: 0.20 High speed: 0.71 |
||||
| Backward (m/s) | 0.23 | |||||
| Raking part | Scrape width (mm) | 790 | ||||
| Divider width (mm) | 910/960/1025 | |||||
| Scraping method | Parallel link rotation/Rubber splash type | |||||
| Conveyor method | Chamber conveyor system | |||||
| Container | Container type | Mini container | Iron container (accompanying) | Mini container | Iron container (accompanying) | |
| Applicable container maximum height (mm) | - | 1700 | - | 1800 | ||
| Shooter width | - | 532 | - | 532 | ||
| Container supply method | Continuous input/ semi-automatic discharge method |
- | Continuous input/ semi-automatic discharge method |
- | ||
| Number of empty containers loaded (pieces) | Up to 45 | - | Up to 45 | - | ||
| Applicable crop | Onion | |||||
| Efficiency <calculated value> (hour/10a) | 2.0 to 2.5 | |||||
| Model name | TP90 | Z0033 | TP90 | Z0033 | ||
| Safety inspection pass number | NARO 20/162 | NARO 20/163 | NARO 20/162 | NARO 20/163 | ||
