SUMMARY

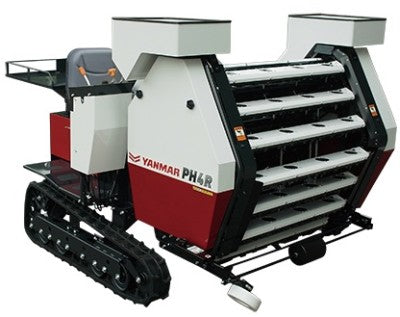

YANMAR Garlic Transplanter PH4R-GHA is a 4 rows transplanter for garlic.
The Garlic Transplanter PH4R-GHA is riding type transplanter. PH4R-GHA is 3 to 4 times more efficient than manual planting.
WORKABILITY
The Garlic Transplanter PH4R-GHA transplants garlic just by pushing garlic to supplying hole. The Garlic Transplanter PH4R-GHA is operated easily from seats.
The Garlic Transplanter PH4R-GHA has two automatic modes: automatic direction and automatic planting depth. It allows operators to focus on supplying garlic.
1. A planting depth sensor follows ridge surface automatically. 2. A driving sensor follows ridge automatically.
The Garlic Transplanter PH4R-GHA has control levers at one side of the driver's seat. It allows operators to control the Transplanter easily even with one hand.
The Garlic Transplanter PH4R-GHA has an emergency stop switch to stop operation quickly.
OPERABILITY

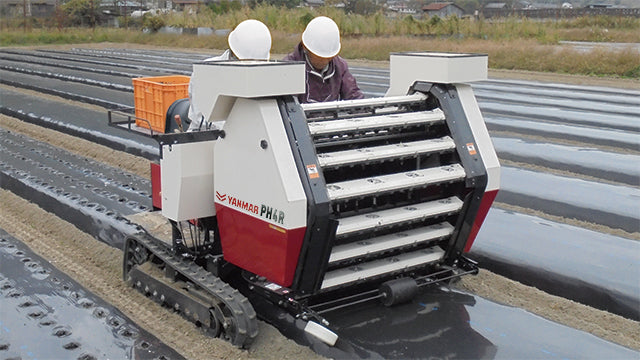

The YANMAR Garlic Transplanter PH4R-GHA transplants garlic just by pushing garlic to supplying hole in front of the seats. No more bending over to plant by hand. The view from the seat is wide open. It is so convenient to transplant garlic with this Garlic Transplanter.
This Garlic Transplanter PH4R-GHA has large diameter supplying holes. The Garlic Transplanter PH4R-GHA aligns the direction of garlic. The garlic planted by the Transplanter will grow the leaves to the same direction.
The Garlic Transplanter PH4R-GHA cuts plastic mulch. After that, the Garlic Transplanter PH4R-GHA transplants garlic in the center of the hole at the planting depth.
The Garlic Transplanter PH4R-GHA transplants 4 rows by 2 operators, 2 rows each.
The Garlic Transplanter PH4R-GHA continues planting by automatically dropping garlic from an auxiliary supplying box. The Garlic Transplanter PH4R-GHA has a table to hold containers.

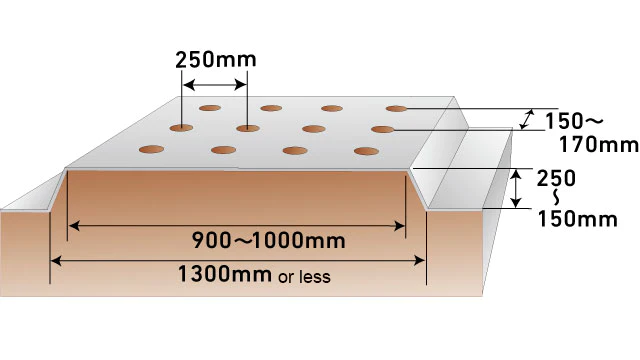

RIDGE SHAPE
OPTIONS
We have a variety of option equipment designed for the Garlic Transplanter PH4R-GHA. Please ask us for more information.
SPECIFICATIONS
| Model name | Garlic Transplanter | ||
|---|---|---|---|
| Model number | PH4R | ||
| Type | GHA | ||
| Dimension | Length (mm) | 2340 | |
| Width (mm) | 1660 | ||
| Height (mm) | 1380 | ||
| Weight (kg) | 540 | ||
| Engine | Engine model | GB131 | |
| Engine type | Air-cooling 4 cycle gasoline | ||
| Total engine displacement (L (cc) ) | 0.126 (126) | ||
| Output / Rotational speed (kW (PS) /rpm) | 2.3 (3.1) /1800 | ||
| Maximum output (kW (PS) ) | 3.0 (4.2) | ||
| Fuel | Automobile lead-free gasoline | ||
| Fuel tank capacity (L) | 2.5 | ||
| Starting method | Self-starter | ||
| Driving | Driving system | Full crawler | |
| Crawler | Width x length of ground contact (mm) | 110ÁE045 | |
| Tread (mm) | 1450 | ||
| Average ground contact pressure (kPa (kgf/cm²) ) | 23.1 (0.236) | ||
| Minimum height from the ground (mm) | 283 | ||
| Shifting method | Gear transmission | ||
| The number of shift steps | Forward 2, backward 1 | ||
| Speed (m/s) <at 1950 rpm> |
Forward | 1st gear: 0.08 2nd gear: 0.40 |
|
| Backward | 0.18 | ||
| Planting | Planting method | Planting and cutting plastic mulch synchronized | |
| Up/down adjustment method | Electric cylinder type (auto and manual) | ||
| The number of planting rows | 4 | ||
| Planting row distance (cm) | 25 | ||
| Planting distance (cm) | 16 (15 , 17 part replacement) | ||
| Planting depth (cm) | 7 (9 adjustable) | ||
| Plastic mulch | Plastic mulch (film) without hole | ||
| The amount of supplied garlic | Supplying box (kg) | About 9.5 | |
| Auxiliary supplying box (kg) | About 19 x 2 | ||
| Vegetable | Garlic | ||
| Operating efficiency (calculated value) (minutes/10a) | 180 - 240 | ||
| The number of operating person | 2 (*1) | ||
| Automatic devices | Direction auto Planting depth auto |
||
| Safety inspection number | 34091 | ||
*1: Two persons when the automatic devices are being used.
