SUMMARY

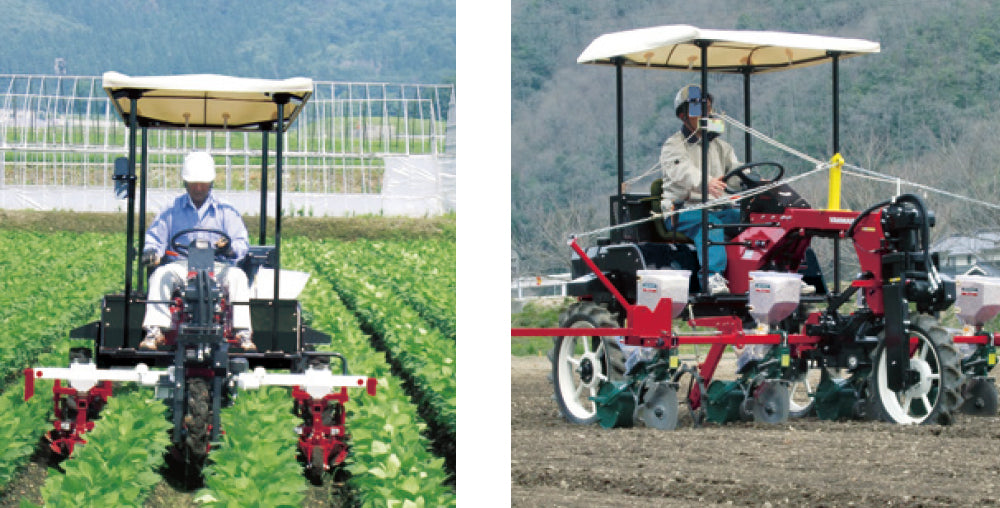

You can drive while watching work in progress because it is a center mount type 3-wheel vehicle that sets an attachment in the center of the machine.
Greatly useful in various situations such as in soybeans and vegetables farms.
The various attachments are available that are designed for professional farm work expand the range of work.
FEATURES
It is possible to work while facing forward. Since there is no need to look back and check the work status, straightness is good and fatigue is reduced.
In addition, fine adjustments can be made while checking the work status, improving work accuracy.
Moreover, you can increase the work speed with confidence and improve the work efficiency.
MD20 is a lightweight design of 629 kg. Even with three wheels, the treading pressure is low, and the tires pass through the same groove only once, so you do not tread on the field.
The height above the ground is as high as about 70 cm, and there is sufficient clearance between the main unit and the crop, so damage to the crop can be reduced during farm work. In addition, the workable period will be expanded. (Example: In the case of soybeans, work is possible until around the time of flowering)
The tread can be adjusted in 6 stages according to the crop planting conditions.
In addition, a rear axle slide method is used to adjust the tread. You can work without breaking the ridges in the chain case.
OPTIONAL ATTACHMENTS
3-Row Tilling Rotary RM301MD, CRTH (for soybeans and vegetables)
Perforated Clean Seeder TDR-U, RTSA
5-Row Weeding Cultivator S3 MD(U)
Soybean pinching machine EVDA-2400Y
Potato Stems and Leaves Cutting Attachment PLC20MD,FRMA
Bean Cutter YHB20,MOA
SPECIFICATIONS
| Model Number | MD20 | |||
|---|---|---|---|---|
| Drive system | 3-wheel drive | |||
| Dimensions | Length (mm) | 3140 | ||
| Width (mm) | 1830 (tread 1500) | |||
| Height (mm) | 2370 | |||
| Minimum ground clearance (mm) | 680 | |||
| Weight (kg) | 629 | |||
| Engine | Type | Air-cooled 4-cycle gasoline engine | ||
| Total displacement (L {cc}) | 0.688 {688} | |||
| Max output / rotation speed (kW {PS} / rpm) |
14.6 {20.0} / 3150 | |||
| Fuel tank capacity (L) | 20 | |||
| Starting method | Cell starter type | |||
| Driving part | Wheel | Front wheel | 4.00-18 | |
| Rear wheel | 4.40-21 | |||
| Wheelbase (mm) | 2120 | |||
| Tread (mm) | 1200, 1260, 1320, 1380, 1440, 1500 | |||
| Tread adjustment method | Rear axle slide method | |||
| Brake type | Dry drum | |||
| Steering method | Power steering | |||
| Shift method | Variable speed | |||
| Driving speed | Forward (km/h) | 0 to 10.2 | ||
| Reverse (km/h) | 0 to 5.3 | |||
| Minimum turning radius (m) | 2.4 | |||
| PTO | Clutch type | Belt tension | ||
| Shaft diameter (shaft type) (mm) | JIS35 (hexagonal spline) | |||
| Attachment lifting device |
Control method | Positioning | ||
| Mounting method | Parallel link | |||
| Model name | Z0023 | |||
| Safety inspection pass number | NARO 20/104 | |||
