SUMMARY
For labor saving and efficiency improvement of strawberry control.
FEATURES

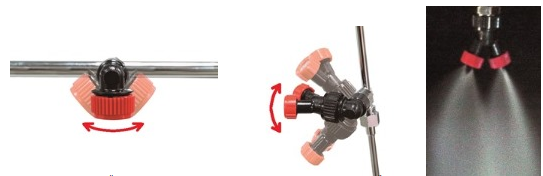

YAMAHO's original Y-shaped fan-shaped nozzle that emphasizes adhesion to the back of leaves. The nozzle angle is flexible, and it sprays effectively on the back of the leaf while shaking the leaf surface.
You can travel easily with a cart.
Since two rows can be sprayed simultaneously, labor and time can be greatly reduced. The arch type eliminates the need to move the jet tube, reducing spraying loss.
The tube is telescopic, and by changing the tube width, it can be used for a wide variety of bench shapes and bowl shapes.
The height of the tube can be adjusted by turning the lever, and switching between single side spraying and double side spraying is also possible.
YAMAHO's original Y-shaped fan-shaped nozzle that emphasizes adhesion to the back of leaves. The nozzle angle is flexible, and it sprays effectively on the back of the leaf while shaking the leaf surface.
The tube width can be changed from 75cm to 120cm.
Can change the height of the tube from 50cm to 90cm.
The remaining liquid can be easily discharged by loosening the cap.
You can switch between single side and double side spraying.
Foldable storage is possible.
SPECIFICATIONS
| Code No. | 19 13 69 |
|---|---|

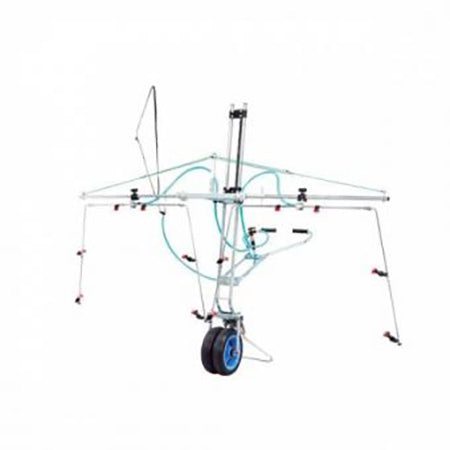

| Product Name | Strawberry cart type D (for soil cultivation) |
| Nozzle | NN-D-35S (top) N-Y45-SM440 (bottom) |
| Press |
9.8 L/min (1.5MPa)) 8.0 L/min (1.0MPa) |
| Coverage | approx. 50cm?`90cm |
| Spraying height |
approx. 130cm?`175cm (Distance from upper nozzle to ground) |
| Size | 190cmÁE0cmÁE48cm |
| Weigt | 12.2kg |
| Adapter | G1/4 |
There is also type D for high raisedsoil cultivation.
