Description
SUMMARY

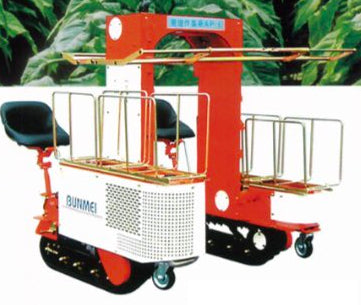

All-purpose Tobacco Harvester.
By using various types of optional attachments, it works everything from transplanting, pest control, harvesting, to carrying out.
FEATURES
- Harvesting is done while sitting, so your body won't get tired.
- A large amount of harvested leaves can be placed on it and carried out.
- Storage frames and shelves can be easily attached and detached.
- A wide range of speeds (0.16 km/h to 3 km/h) can be selected, so you can adjust the speed to suit a variety of tasks.
- Various types of attachments are available. Attachments are easily attached and detached.
OPTIONAL ATTACHMENTS
Transplanting
- Since there are several nursery tray racks, a large number of seedlings can be transplanted at once.
- The work is very easy because two people can sit on it.
- With a wide range of speeds, even if you are unfamiliar with the work, you can choose the speed that best suits your work.
- Rubber crawlers are used, so there is almost no slippage and planting intervals are constant.
Auto driving
- The automatic driving device makes the machine drive along the soil bed, so you can concentrate on transplanting, harvesting and other tasks without being distracted by what's ahead.
- This machine is equipped with safety devices such as an automatic stop, so you can concentrate on your work with peace of mind.
Spraying
- Since the driving speed is constant, there is no waste of chemicals because the spraying is even.
- You can easily fold the spray pipe and operate the spray cock by hand.
- The power sprayer, nozzle, tank, etc. can be easily attached and detached.
- By setting the windshield, it prevents chemicals from splashing to the human body.
SPECIFICATIONS
| Dimensions | Length | 2200 mm | |
|---|---|---|---|
| Width | 1530 mm | ||
| Height | 2330 mm | ||
| Clearance | 2100 mm | ||
| Weight | 470 kg | ||
| Crawlers | Center distance | 1170 mm | |
| Width | 180 mm | ||
| Ground height | 900 mm | ||
| Outside width | 1350 mm | ||
| Inside width | 990 mm | ||
| Engine | Rated output | 4.5ps/1800rpm | |
| Max output | 6.0ps/2000rpm | ||
| Starting method | Cell method (Recoil) | ||
| Fuel capacity | 4 L | ||
| Oil capacity | 0.7 L | ||
| Side clutch | Claw lock method | ||
| Clutch | Belt tension method | ||
| Parking brake | Internal expansion brake | ||
| Shift gears | Forward | 6 | |
| Backward | 2 | ||
| Speed (km/h) | Forward | L-1 | 0.16 to 0.36 |
| L-2 | 0.32 to 0.71 | ||
| L-3 | 0.51 to 1.14 | ||
| H-1 | 0.43 to 0.96 | ||
| H-2 | 0.84 to 1.89 | ||
| H-3 | 1.36 to 3.00 | ||
| Backward | L-R | 0.16 to 0.35 | |
| H-R | 0.41 to 0.92 | ||
| Applicable bed distance | Over 115 cm | ||
