SUMMARY

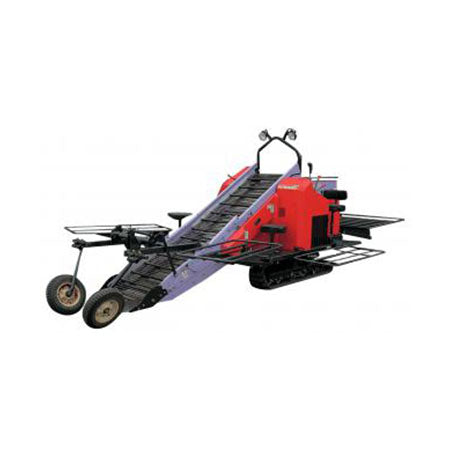

It is an excellent machine that makes the harvesting of potatoes fun. For sweet potatoes, Taro, etc.
You will be freed from the heavy work of digging, and you can work comfortably while riding.
In the video above, the children are helping out together. It is a harvester that anyone can work easily and speedily.
Note:
This is a Built to order product. Delivery takes about a year.
Please contact us for details.
FEATURES
Turn with one lever
Left and right turning is possible with one lever.
Equipped with a constant drive system in the driving mission. You can make a smooth turn in conjunction with the lever operation.
3-stage mission for high speed
The running speed can be selected from 3 levels: L, M, and H.
With continuously variable transmission (HST), you can freely set the speed according to your work.
With one lever, you can adjust the digging conveyor part up and down while shifting the speed.
Safe driving with movable wheels
You can safely load it up on the truck and unload from the truck. Crossing the ridges is easy as well.
Easy to store
A two-stage conveyor, a cog belt conveyor and a sorting conveyor, makes sorting and storage easy.
16 horsepower engine
Large fuel tank 23L
It has the power to work hard.
The large fuel tank allows you to work the day almost without refueling.
* Depends on the harvest scale. Please check the specifications.
Adjustable height of container stand
An elevating container is standard equipment.
The position of the container stand moves up and down steplessly, making it easy to load onto trucks.
Easy maintenance
Since each cover and conveyor part can be easily opened, adjustment and maintenance are easy.
SPECIFICATIONS
| Model | GRA650 |
|---|---|
| Length (mm) | 5230 |
| Width (mm) | 2690 |
| Height (mm) | 1820 |
| Weight (kg) | 1270 |
| Harvesting Width (mm) | 66 |
| Working Speed (km/h) | 0.3-1.5 |
| Efficiency (h/10a) | 1.7-8.3 |
| Engine | Water-cooled 4 cycle 3-cylinder diesel |
| Rated Output (kW/rpm) | 11.8/2800 |
| Tank Capacity (L) | 23 |
|
Number of containers that can be loaded |
20 (each 1 step) |
| Harvesting Width (mm) | 2-4 (Including the driver) |
Note:
This is a Built to order product. Delivery takes about a year.
Please contact us for details.
