SUMMARY

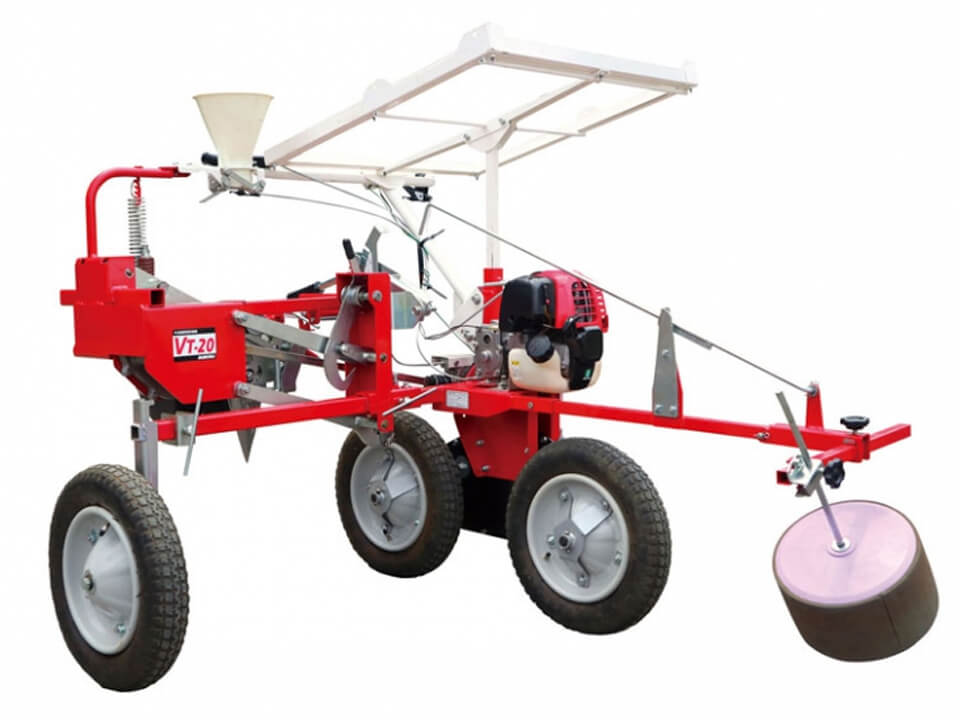

Semi-automatic transplanter for planting seedlings with soil grown in the cell plug trays!
Ideal for wide crop spacing vegetables like Lettuce, Cabbage, Broccoli, cauliflower, Chinese cabbage, green onions and more.
VT-20 can drive approximately 410 meters straight per hour.
For example, if you plant lettuces with VT-20 at a crop spacing of 20 cm, you can plant approximately 2,000 lettuces per hour.
If you want air freight (DHL or FedEx), please request a quote from here.
FEATURES

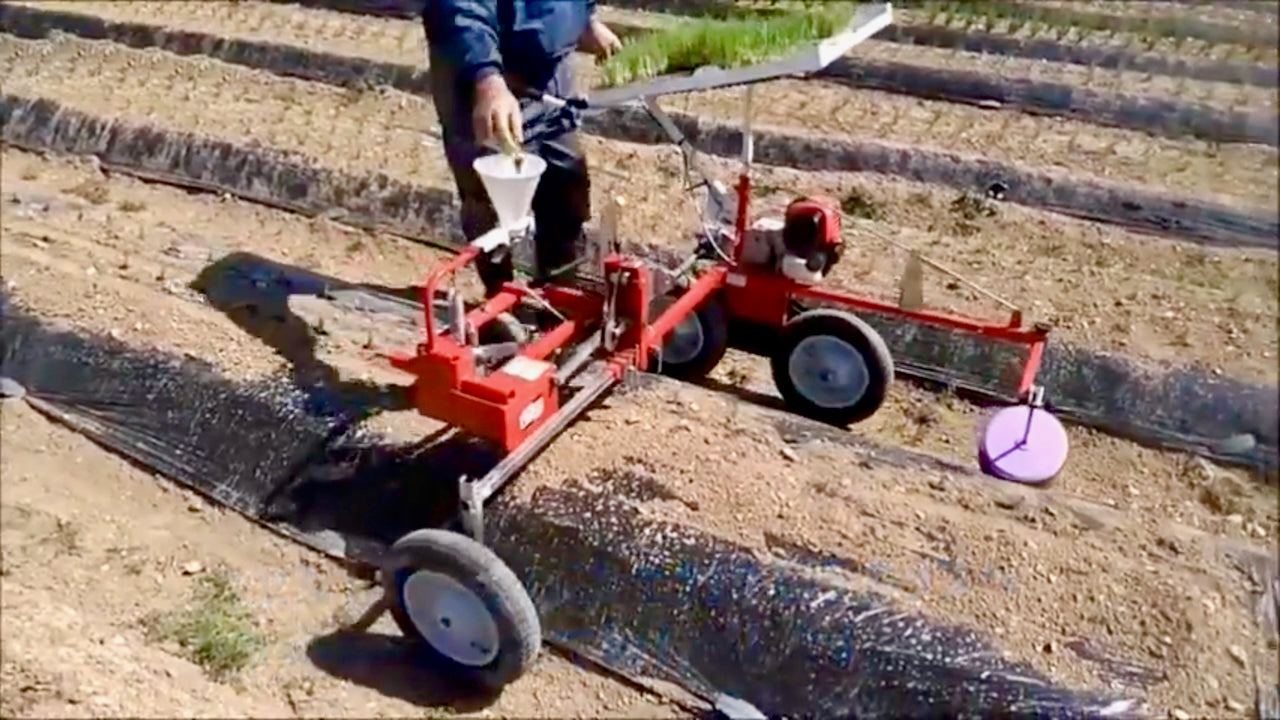

- Put the soiled seedlings grown in the cell plug trays into the cup one by one and the Transplanter will plant them automatically.
- The opening force of the cup is about twice as strong as that of the conventional model (VT-2).
- Can be used for a wide range of crops such as cabbage and broccoli.
- The crop spacing can be changed at 16.6, 20, 25, and 31 cm as standard. 19 different spacings are available as an option. 24 different crop spacings are available in total.
- The planting part can slide horizontally steplessly and the planting position can be changed freely.
- Even 3 rows planting is possible by going and returning on a soil bed.
VIDEO
VIDEO (OLD MODEL)
SPECIFICATIONS
| VT-20 | |
|---|---|
| Model type | Walk behind type 1 row transplanter (possible to plant 2 to 4 rows by going and returning) |
| Dimensions (mm) | L 1600 x W 1250 x H 1100 |
| Weight (kg) | 63 |
| Engine Part | |
| Engine model | EH025 |
| Engine mechanism | Air cooled 4 cycle gasoline engine |
|
Output / RPM |
Rating: 0.5kW(0.7PS) / 7000rpm |
| Fuel type | Regular gasoline for automobile |
| Fuel capacity (L) | 0.5 |
| Ignition Method | Recoil starter |
| Driving Part | |
| Number of gears | Forward: 1 |
| Wheel diameter | 360 mm (2 wheels at left and 1 wheel at right) |
| Driving wheels | Two left wheels |
| Wheel track distance | 73 to 140 cm (stepless) |
| Driving speed | 0.10 to 0.13 m/s (include slip ration 5%) |
| Planting Part | |
| Number of rows | 1 (possible to plant 2 to 4 rows by going and returning) |
| Ridge Height (cm) | 15 to 30 |
| Row spacing | stepless |
| Row distance adjustment | Sliding the planting part and fix with a T-shaped bolt |
| Crop spacing (cm) | 16.6, 20, 25 and 31 (Standard) |
| Crop space adjusting method | Claw method |
| Loadable extra nursery trays(pcs) | 2 |
| Planting position | 30 to 70 cm (at 20cm ridge height and the distance from the center of the left wheel) |
| Seedling condition | |
| Seedling height | Up to 12 cm |
| Recommended tray | POT220, POT324 |
PACKING DETAILS
| Dimension (mm) | L1200 x W980 x H800 |
|---|---|
| Gross Weight (kg) | 90 kg |
| M3 | 1.426 |
