SUMMARY

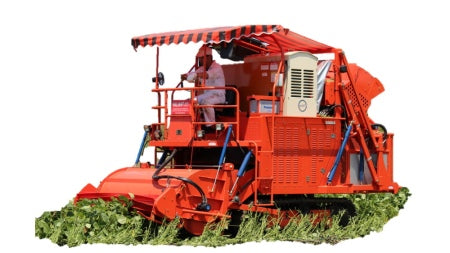

This driving type harvester will harvest edamame pods and sort edamame pods from its twigs and leaves. It removes twigs and leaves by using a roller and harvests edamame pods. The edamame pods are conveyed to the back and stored in the container. The twigs and leaves are blown out by a fan.
The Harvester operates powerfully and stably even in harsh conditions.
FEATURES
Field protection
The crawler is designed for not damaging the field, and the harvester does not harden the ground between plant beds. (Average grounding pressure is 0.31kg per square cm)
Crawler width: 320 mm, grounding length: 1800 mm
Easy operation
The custom designed handle and steering control driving to all directions constantly stable (Forward and backward continuous variable speed). The harvester turns easily any directions you want. All the control levers are located around the driving seat. A driver can control everything from the seat. Everybody can drive this harvester.
Strong mechanism
It is driven by hydraulic system. By adding toughness, it prevents troubles.
SPECIFICATIONS
| Model number | MCBH11 | |
|---|---|---|
| Engine | Type | Water-cooled 4-cycle 4-cylinder diesel engine |
| Output | 30.5kW(41.5PS)/2500rpm | |
| Starting method | Cell motor | |
| Battery | 12 V | |
| Dimension | Length | 5590 mm |
| Width | 2100 mm | |
| Height | 2920 mm | |
| Weight | 3600 kg | |
| (Average grounding pressure is 0.31kg per square cm) | ||
| Track gauge | 1200 mm | |
| Harvesting width | 1600 mm | |
| Max. safety angle | 15 degree | |
| Operationale angle | 5 degree | |
| Driving part | Hydraulic variable displacement pump | |
| 2-speed swash plate piston motor | ||
| Sub-shift variable 2 gear speed (both forward and reverse are hydraulic continuously variable speeds) | ||
| Rubber type crawler | ||
| Conveying system | Conveyor type | |
| Storage type | Container type 1.5 cubic meter | |
| Operation efficiency | 10 a/h (depending on the field conditions) | |
