FEATURES
- No leftover rice. The development of a tilting main unit greatly improves the rice milling capacity and discharges all rice without leaving any residue.
- Brown rice discharge mechanism which suctions, and discharges dirt and dust attached to brown rice.
- A stepless resistance cam is used to adjust the whiteness of the polished rice.
- The largest class of pressure feed/suction fan and large split cyclone are used to improve bran removal and low-temperature rice polishing.
- A 2.5-inch elevator with zero leftover rice is used to transfer rice.
SPECIFICATIONS

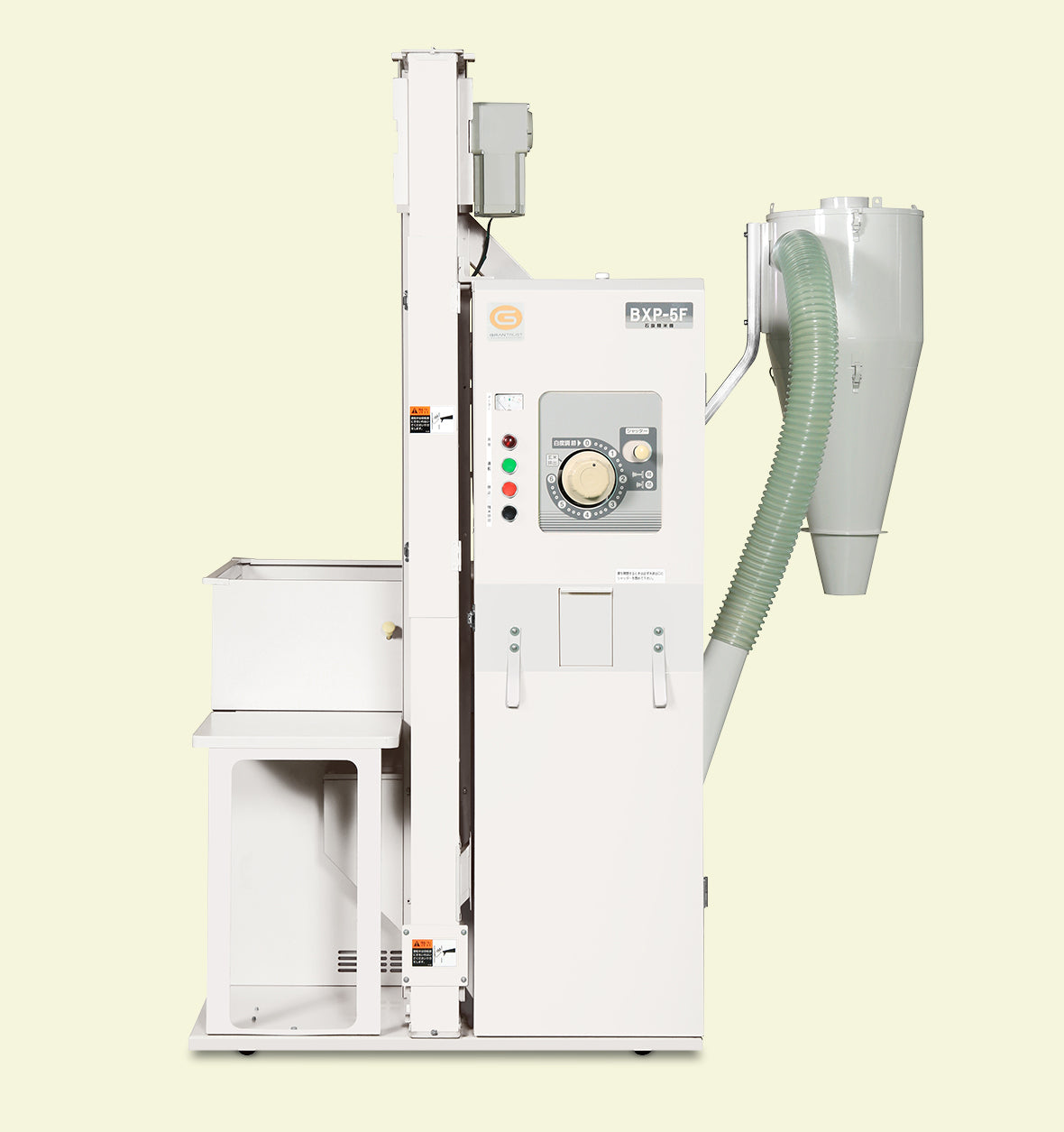

| Model name | BXP-5F type | |
|---|---|---|
| Hourly capacity | kg/h | Brown rice: 270-300 Destoning: 350 |
| Tank capacity | kg | Staking tank: brown rice 30, paddy 20 |
| Rice mill motor | kw | 3.7 (Three-phase 200V-4P) |
| Destoner motor | kw | 0.1 (Three-phase 200V-4P) |
| Elevator motor | kw | 0.09 (Three-phase 200V-4P) |
| Suction fan motor | kw | 0.2 (Three-phase 200V-2P) |
| Safety device | Overload protection breaker | |
| Weight | kg | 307 |
| Size Width x Length x Height | mm | 901 (1,395 with cyclone) x 1,038 x 1,750 |
