Description
SUMMARY
Perfect sprayer for wide area disinfection, herbicides and pest control in fields and gardens.
Twin piston type high pressure pump is used.
Honda engine, 50 liter tank and carrier are integrated with a 8.5 mm diameter 50 m long hose with various nozzles.
FEATURES
- It can spray over 4 m high tree using the included nozzle for high tree.
- Twin-piston 4-cycle Honda engine.
- Applicable to herbicide and disinfection by changing the pressure at 6 levels with the dial (max. 3.0MPa pressure).

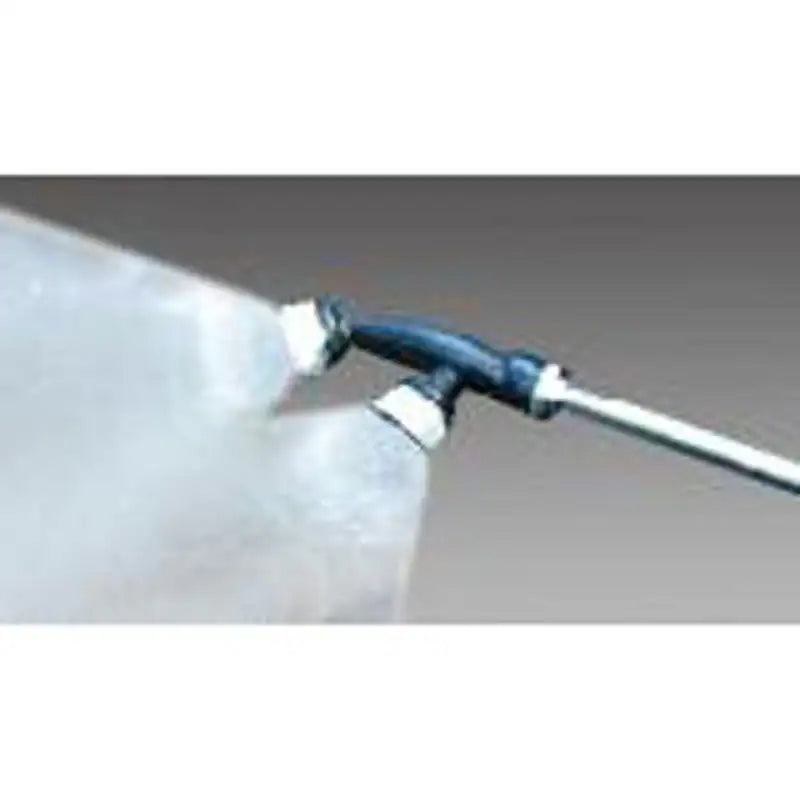

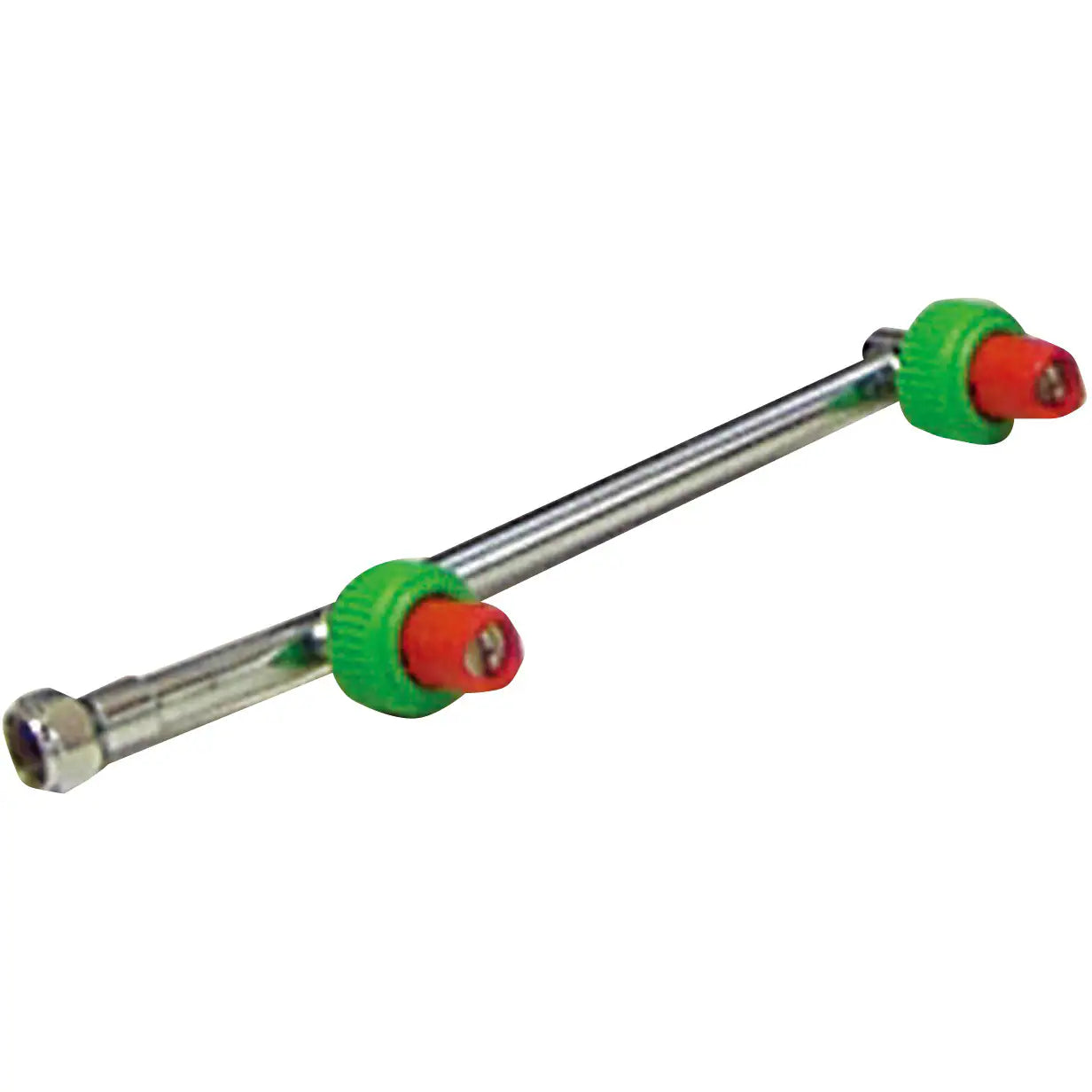

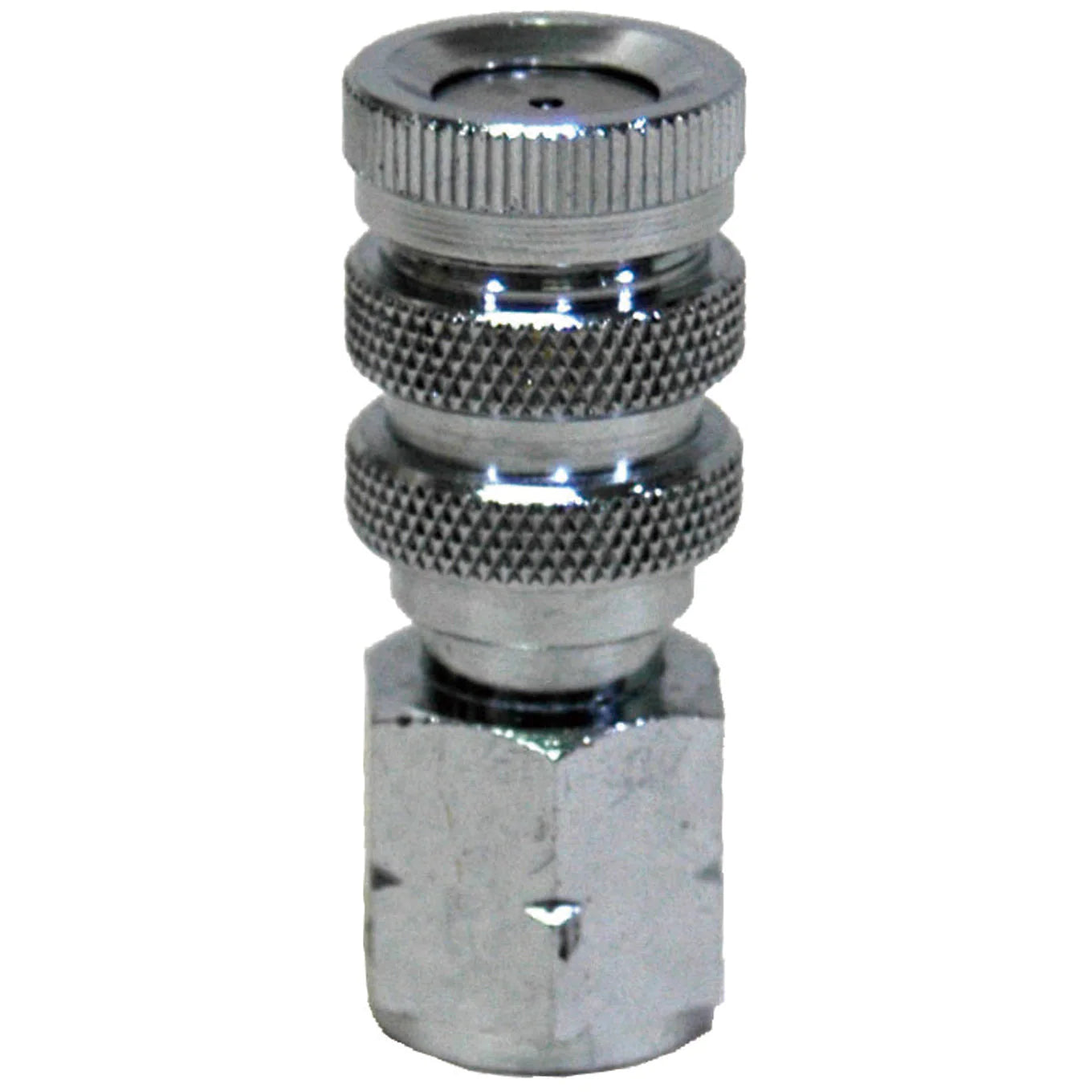

- 3 types of nozzles are included (G1/4 thread).
SPECIFICATIONS
| Model | MS-ERH50TH85 | |
|---|---|---|
| Pump | Type | Double piston pump |
| Sprayer | Tank capacity | 50L |
| Nozzle | Flexible single-headed nozzle, foamy weeding double-headed nozzle, vertical double-headed nozzle | |
| Spray switching | ||
| Nozzle pipe length | 62 to 109 cm | |
| Hose | φ8.5 x 50m | |
| Spout connection screw | ||
| Spray amount | 1.1 to 4.8 L/min | |
| Maximum pressure | 3.0MPa (30kgf/cm2) | |
| Regular spray pressure | ||
| Working liquid | Liquid quality | Insecticide chemical, disinfectant chemical, herbicide chemical |
| Liquid temperature | ||
| Engine | Type | Forced air-cooled 4-stroke gasoline engine |
| Model (manufacturer: name) | Honda: GX25 | |
| Displacement | 25 cm3 (cc) | |
| Continuous rated output | ||
| Maximum output | 0.72 kW (1.0 PS) / 7,000 min-1 | |
| Fuel | Unleaded gasoline for automobiles | |
| Mixing ratio | - | |
| Fuel tank capacity | 0.53L | |
| Fuel tank capacity (red level) | - | |
| Engine oil | 4 cycle engine oil | |
| Engine oil capacity | 80cc | |
| Approximate fuel consumption | About 40 minutes | |
| Estimated fuel consumption (red level) | - | |
| Starting method | Recoil starter system | |
| Spark plug (manufacturer/part number) | NGK: CM5H or equivalent | |
| Weight | 40kg | |
| Accessories | 1 free single-headed nozzle 1 foamy weeding double-headed nozzle 1 vertical double-headed nozzle 1 two-stage telescopic nozzle pipe joint 1 grip 1 untwisted, discharge hose (φ8. 5 x 50 m) 1 suction hose (0.9 m) 1 spill hose (0.8 m) 1 reel handle 2 reel handle bolts 1 strainer 1 jubilee band 1 oil change bottle |
|
