SUMMARY

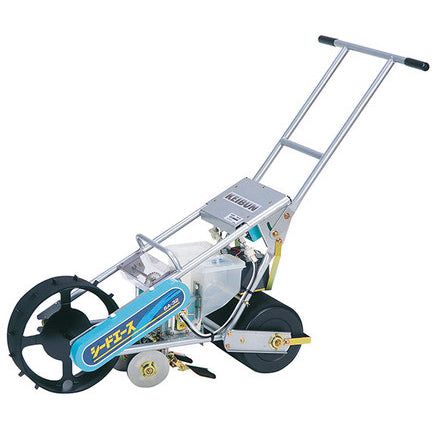

Keibuntech Vacuum Vegetable Seeders will precisely sow vegetable seeds by vacuum method.
It will reduce the waste of seeds.
The vacuum pressure adsorbs the desired number of seeds to the nozzle and forcibly sows at positive pressure, so the seeds are not damaged, the germination rate is not reduced, and high-quality crops will grow.
FEATURES
- By adopting a slide handle, sowing work can be done easily even at corners in your farm.
- The newly developed small seeding rotor makes the whole frame compact.
- Quick attachment / detachment of the sowing unit and removal of residual seeds!
- LED display to prevent over-discharge of the battery. It notifies you when to charge.
VIDEO
SPECIFICATIONS
| Model Name | SA-32 |
|---|---|
| The number of planting rows | 2 |
| Row distance (mm) | 120 to 180 |
| Sowing interval (mm) | 30 to 260 (sprocket exchange type) |
| Sowing hopper capacity (L) | 1.2 L x 2 pcs |
| Cultivating method | Stainless steel W discs |
| Motor output | DC12V 146W (two 73W) |
| Battery | DC12V 12Ah |
| Fuse | 125V 10A |
| Applicable vegetable seeds | Spinach, radish, Japanese mustard spinach, turnip, etc. |
| Dimensions (mm) | 1270 x 330 x 780 |
| Weight (kg) | 18.5 |
| Accessories |
|
PLANTING DISTANCE ADJUSTMENT
| Sprocket | Number of nozzles | |||
|---|---|---|---|---|
| Front wheel side | Intermediate shaft | 8 | 4 | 2 |
| 14 | 10 | 30mm | 60mm | 120mm |
| 13 | 10 | 35mm | 70mm | 140mm |
| 13 | 12 | 40mm | 80mm | 160mm |
| 12 | 12 | 45mm | 90mm | 180mm |
| 12 | 13 | 50mm | 100mm | 200mm |
| 10 | 13 | 60mm | 120mm | 240mm |
| 10 | 14 | 65mm | 130mm | 260mm |
