SUMMARY

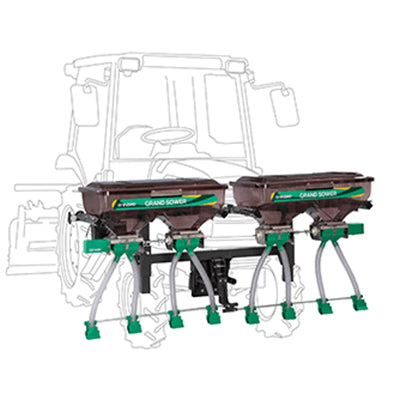

An excellent tool to attach to the tractor to spray fertilizer.
FEATURES
Feeding part open mechanism
High-speed discharge of fertilizer remaining in the hopper.
Switch BOX and cord are easily split.
Installation and removal have been simplified.
Hopper remaining seal
You can check the remaining amount of fertilizer at a glance.
Ridge jumping mechanism [Exclusive for F type]
The diffuser at the tip jumps up. It is possible to move over ridges and between fields without worrying about the ground height.
* Depending on the conditions, it is not possible to jump up in all cases.
One-touch hopper funnel
It can be easily attached and detached without tools, and can be easily cleaned and maintained.
Equipped with a stand
It can be easily attached to and detached from the tractor, and can be stored separately.
SPECIFICATIONS
| Model Name | UX-140F |
|---|---|
| Hopper capacity (L) | 140 |
| Weight (kg) | 91 |
| Motor | DC12V 20W |
| Number of motor | 2 |
| Maximum spray rate (m) |
Granular: 2.4 granular: 2.2 |
| Number of hoses | 8 |
| Spray amount | 20-150kg/10a (30 min) |
| Adaptive tractor | 30-75PS- |
| Use for |
Granulation: (2-4mm) Sandy: Calcium silicate, Soluble phosphoric acid, Soil conditioner Organic pellets (Requires a large application roll of optional items) |
