SUMMARY

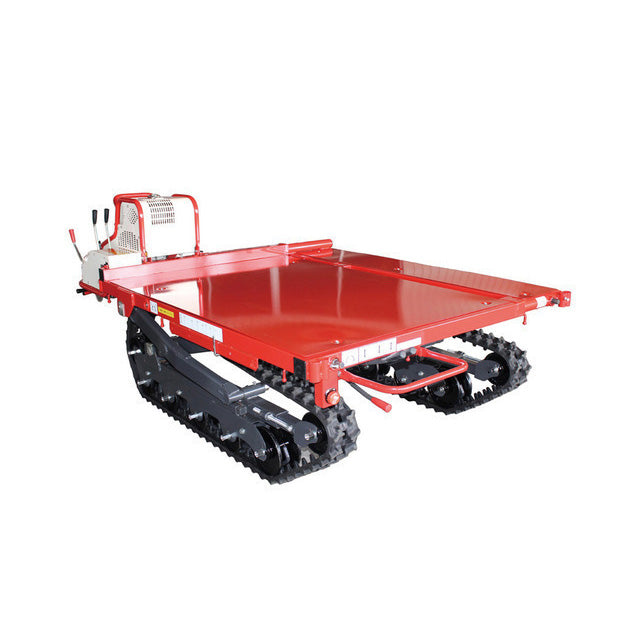

Cross-Ridge Crawler Transport Vehicle crawls over ridges and carries vegetables and crops.
The Cross-Ridge Crawler Transport Vehicle is designed for use in harvest time.
FEATURES
- Equipped with an emergency stop switch for safety.
- Tread width can be manually adjusted from 1070 mm to 1870 mm.
- Minimum ground clearance can be manually changed from 430 mm to 780 mm.
- Equipped with a clutch lever on the cargo bed side.
SPECIFICATIONS
| Model Number | NKCG16-HWA | |
|---|---|---|
| Length (mm) | 2290 | |
| Width (mm) | 1480 | |
| Height (mm) | 1025 | |
| Dry Weight (kg) | 452 | |
| Maximum Operation Capability (kg) | 500 | |
| Table Length x Width (mm) | 1560 x 1440 to 2240 | |
| Engine Model | GB131LN | |
| Maximum Engine Output (kW) | 3 | |
| Crawling Speed (Forward) (km/h) | 0.4 / 0.7 / 1.2 / 1.4 / 2.2 / 4.0 | |
| Crawling Speed (Backward) (km/h) | 0.5 / 1.7 | |
| Width of Crawler (mm) | 130 | |
| Crawler Tread at Outside (mm) | 1200 to 2000 | |
| Height from the Ground to Bottom of the Table(mm) |
|
