SUMMARY

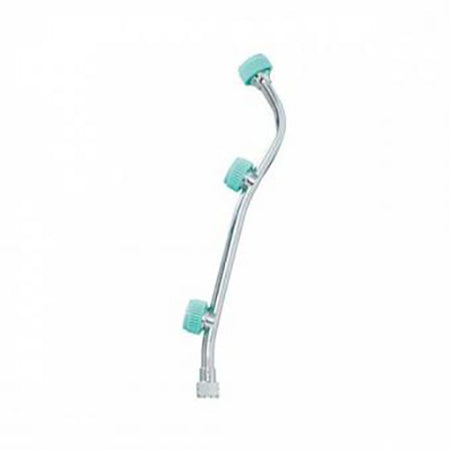

This nozzle produces a 80°flat fan. The pole curve and nozzle alignment is precisioned for the most uniform coverage. Very fine attachment onto target; ideal for use in both orchards and vegetable fields.
FEATURES
- UKIAGARI (Low-Drift) Boom Sprayer
- To save pesticides
- Drift-reducing
SPECIFICATIONS
| Nozzle # | SV-20-80C |
|---|---|
| Average Drop Size (μm) | 130 (1.5MPa) |
| Pressure Range (MPa) | 1.0 to 1.5 |
| Code No. | 12 51 21 |
|---|---|
| Product Name | UKIAGARI (Low-Drift) Boom Sprayer 3-nozzles |
| Press | 6.2 l/min (1.5MPa) |
| Coverage | approx. 100cm |
| Length/Weight | 27cm / 100g |
| Adapter | G1/4 |
# Coverage as of 30 cm from nozzle head.
