SUMMARY
Produces a 20°flat fan-shaped, air-assisted fine spray with excellent drift control.

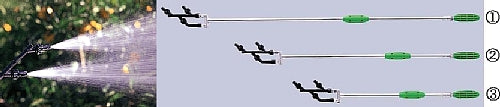

By turning the hand grip, you can use two types of heads for long distances and two heads for medium and short distances. Ideal for street trees, standing trees, fruit trees (orange, apples, etc.).
FEATURES
- Kirinashi (Ultra Low-Drift) Switching nozzle for Fruits Tree
- To save pesticides
- Drift-reducing
- By turning the hand grip, you can use two types of heads for long distances and two heads for medium and short distances. Ideal for street trees, standing trees, fruit trees (orange, apples, etc.).
SPECIFICATIONS
| Average Drop Size (μm) | 600 to 860 (1.0MPa) |
|---|---|
| Pressure Range (MPa) | 0.5 to 1.5 |
| Code No. | 14 12 26 | |
|---|---|---|

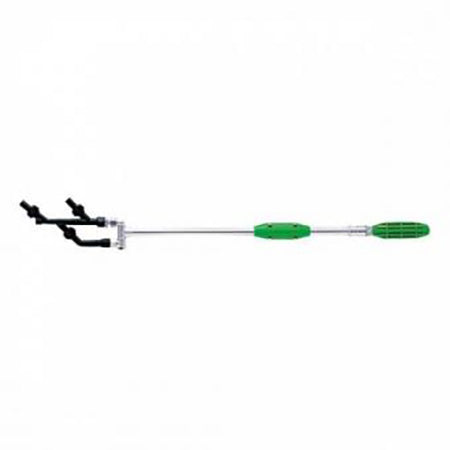

| Product Name | Kirinashi (Ultra Low-Drift) Switching nozzle for Fruits Tree P-700 | |
| Nozzle Number | 1 | 2 |
| Press |
5.7 l/min (1.0MPa) 7.0 l/min (1.5MPa) |
6.3 l/min (1.0MPa) 7.7 l/min (1.5MPa) |
| Nozzle | N-KE-20B | N-KF-15B |
| Coverage | approx. 5cm | approx. 60cm |
| Reach Distance | approx. 10m | approx. 6m |
| Length/Weight | 81cm / 540g | |
| Adapter | G1/4 | |
# Coverage as of 1 m from nozzle head.
