SUMMARY
For controlling scale insects in tea gardens.
FEATURES
The mist of snow is sprayed in a fan shape at a wide angle of about 180 °.
Unevenness is reduced by two-layer spraying.
The tip nozzle can adjust the spray direction.
By making the nozzle direction upward, 360 ° spraying is possible, and the adhesion rate to the back of the leaves has been greatly improved. The amount of chemical used can be reduced.
It is a structure that sprays while moving about 8cm in the tea garden leaf layer.
This is a single-row type for cutting the tea garden leaf layer with R3000 and tea garden width of 1600mm.
SPECIFICATIONS
| Average Drop Size (μm) | 100 (0.7MPa) |
|---|---|
| Pressure Range (MPa) | 0.7 to 1.0 |
| Code No. | 17 20 13 |
|---|---|

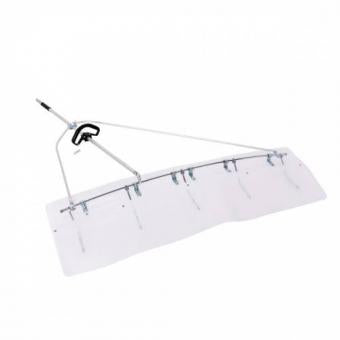

| Product Name | Scale Insects Control for Tea Garden STR3000 |
| Press |
22.6 L/min (0.7MPa) 27.0 L/min (1.0MPa) |
| Coverage | approx. 151cm |
| Nozzle pitch | approx. 323cm |
| Length/Weight | 150cm / 3630g |
| Adapter | G3 / 8 (ρE0 or ρE1.5) |
