SUMMARY
The ultimate solution for effortless agricultural spraying, specifically optimized for overhead trellis cultivation. Constructed from ultra-lightweight materials, this versatile multi-light nozzle system significantly reduces physical strain and operator fatigue during extended use.
Engineered with precision fluid dynamics, it delivers a consistent, targeted mist that maximizes crop coverage while streamlining your daily workflow. Ideal for orchards and vineyards seeking professional-grade performance and superior comfort.
FEATURES
-
Wide-Area Dispersion Nozzles: Equipped with three specialized nozzle stages (1st, 2nd, and 3rd) that generate a powerful, long-range mist. The optimized spray pattern disperses widely into the distance, making it perfect for expansive, large-scale application.
-
Independent Nozzle Customization: * The 1st nozzle features an easy-to-use adjustment knob that allows you to seamlessly transition between a powerful straight stream (jet spray) and a wide-angle mist.
-
The 2nd and 3rd nozzles offer flexible spray angle adjustment and can be individually shut off to suit specific rows or coverage needs.
-
-
Patented Handle-Lock Mechanism: Designed with a built-in locking system that lets you lock or release continuous spraying effortlessly with just one hand.
-
Ergonomic, Lightweight Build: Constructed from high-strength resin to keep the unit ultra-lightweight, combined with a compact, easy-grip lever that significantly minimizes hand strain and overall operator fatigue during extended use.
Example of the 1st (direct) to 3rd nozzle spraying
Example of the first nozzle wide-angle spraying
SPECIFICATIONS
| Nozzle | 1st Nozzle | 1st to 3rd Nozzles |
| Average Particle Diameter (µm) |
120–790 (Wide Angle – Straight Jet) |
190–790 (Wide Angle – Straight Jet) |
| Optimum Pressure (MPa) |
1.0–1.5 | |

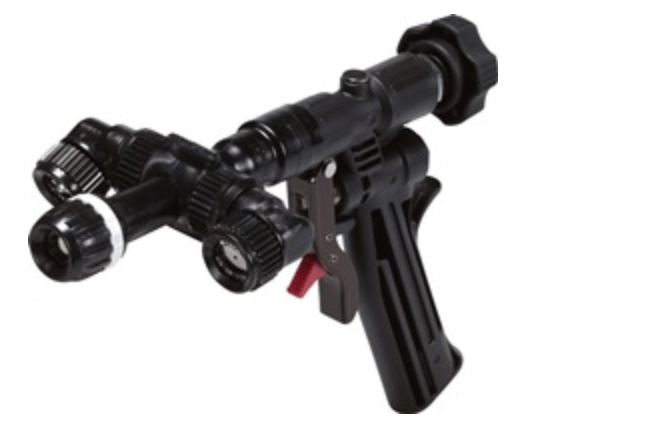

| Product Name | Multi Light Sprayer | |
| Nozzle Designation |
1st Nozzle: φ2.4 (Ceramic) 2nd Nozzle: NN-OP-12MS 3rd Nozzle: SP-28-30MS |
|
| Spray Pattern | Straight Jet | Wide Angle |
| Discharge Volume (1.5 MPa) |
1st Nozzle Only: 13.7 L/min 1st to 3rd Nozzles: 17.8 L/min |
1st Nozzle Only: 5.0 L/min 1st to 3rd Nozzles: 10.1 L/min |
| Reach Distance (1.5 MPa) |
1st Nozzle Only: Approx. 13 m 1st to 3rd Nozzles: Approx. 12 m |
1st Nozzle Only: Approx. 5 m 1st to 3rd Nozzles: |
| Total Length & Weight |
22 cm • 390 g | |
| Mounting Thread |
G 1/4 | |
