SUMMARY
Double Function Sprayer for Disinfection and Herbicide.
High pressure piston pump performs maximum pressure 3.0 MPa (30 kgf/cm2).
FEATURES
- Lightweight backpack sprayer with comfortable belts.
- Applicable to herbicide and disinfection by changing the pressure at 6 levels with the dial.
-
Even a woman can easily carry it on her back.
- Easy to dilute
- Two types of nozzles are included:

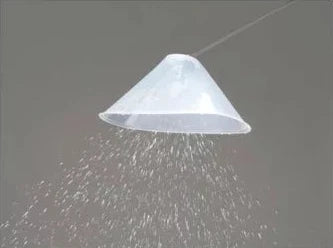

- Bubble Type Herbicide Nozzle with Cover
- 2-Head Nozzle
SPECIFICATIONS
| Pump | Type | Single piston pump |
|---|---|---|
| Sprayer | Tank capacity | 20L |
| Spout | Vertical two-head nozzle, foam weeding nozzle with cover | |
| Spray switching | 6 levels of pressure switching | |
| Nozzle pipe length | 60cm | |
| Hose | φ6 x 1.5m | |
| Spout connection screw | Nozzle pipe: G 1/4 | |
| Spray amount | Vertical double head nozzle (at high pressure): 3.5 L/min Covered foam weeding nozzle (at weeding): 0.63 L/min |
|
| Maximum pressure (cutoff) | 3MPa (30kgf/cm2) | |
| Regular spray pressure | ||
| Applicable liquid | Liquid quality | Insecticide chemical, disinfectant chemical, herbicide chemical |
| Liquid temperature | ||
| Engine | Type | Air-cooled 2-stroke gasoline engine |
| Model (manufacturer: name) | KOSHIN: KC22-D | |
| Displacement | 22.6 cm3 (cc) | |
| Continuous rated output | ||
| Maximum output | 0.5 kW (0.67 PS) / 6,500 min-1 | |
| Fuel | 2 cycle oil mixed gasoline | |
| Mixing ratio | 50 (gasoline) : 1 (oil) | |
| Fuel tank capacity | About 0.5L | |
| Fuel tank capacity (red level) | - | |
| Engine oil | 2-cycle engine oil JASO standard FC or FD class | |
| Engine oil capacity | - | |
| Approximate fuel consumption | 50 minutes | |
| Estimated fuel consumption (red level) | - | |
| Starting method | Recoil starter system | |
| Spark plug (manufacturer/part number) | Champion: RCJ6Y | |
| Product weight | 7.3kg | |
| Accessories included | 1 vertical double-headed nozzle 1 foam weeding nozzle with cover 1 nozzle pipe 1 grip 1 discharge hose (φ6 x 1.5 m) 1 measuring cup 1 ball cock 1 engine tool (spark plug wrench 19 mm) 1 instruction manual |
|
