YAMAHO Sector Spray Strawberry cart type K 191368 NN-D-35S, N-Y45-SM440 G1/4

YAMAHOSKU: 191368

Preis:
Sonderpreis¥163,959 JPY

Beschreibung

SUMMARY

For labor saving and efficiency improvement of strawberry control.

FEATURES

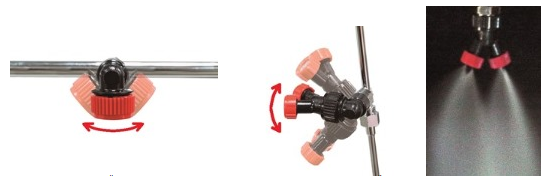

YAMAHO's original Y-shaped fan-shaped nozzle that emphasizes adhesion to the back of leaves. The nozzle angle is flexible, and it sprays effectively on the back of the leaf while shaking the leaf surface.

You can travel easily with a cart.

Since two rows can be sprayed simultaneously, labor and time can be greatly reduced. The arch type eliminates the need to move the jet tube, reducing spraying loss.

The tube is telescopic, and by changing the tube width, it can be used for a wide variety of bench shapes and bowl shapes.

The height of the tube can be adjusted by turning the lever, and switching between single side spraying and double side spraying is also possible.

YAMAHO's original Y-shaped fan-shaped nozzle that emphasizes adhesion to the back of leaves. The nozzle angle is flexible, and it sprays effectively on the back of the leaf while shaking the leaf surface.

The tube width can be changed from 75cm to 120cm.

Can change the height of the tube from 120cm to 175cm.

The tube can be easily slid to the left or right according to the bench.

The remaining liquid can be easily discharged by loosening the cap.

You can switch between single side and double side spraying.

Foldable storage is possible.

SPECIFICATIONS

Code No. 19 13 68

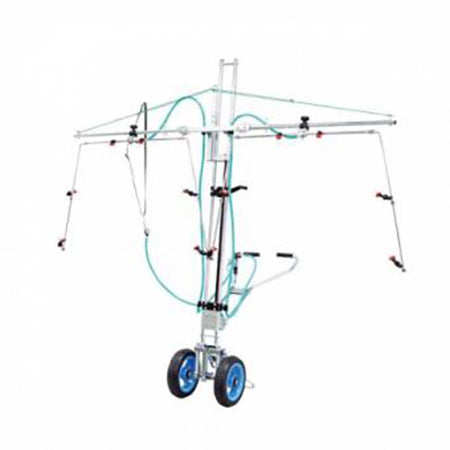

Product Name Strawberry cart type K (for high raised)
Nozzle  NN-D-35S (top) N-Y45-SM440 (bottom)
Press

9.8 L/min (1.5MPa))

8.0 L/min (1.0MPa)

Coverage approx. 75cm?`120cm
Spraying height

approx. 130cm?`175cm

(Distance from upper nozzle to ground)

Size 190cmÁE0cmÁE87cm
Weigt 13.6kg
Adapter G1/4

There is also type D for soil cultivation.
