SUMMARY
Covers a wide range of targets, both nearand far, with excellent drift control.

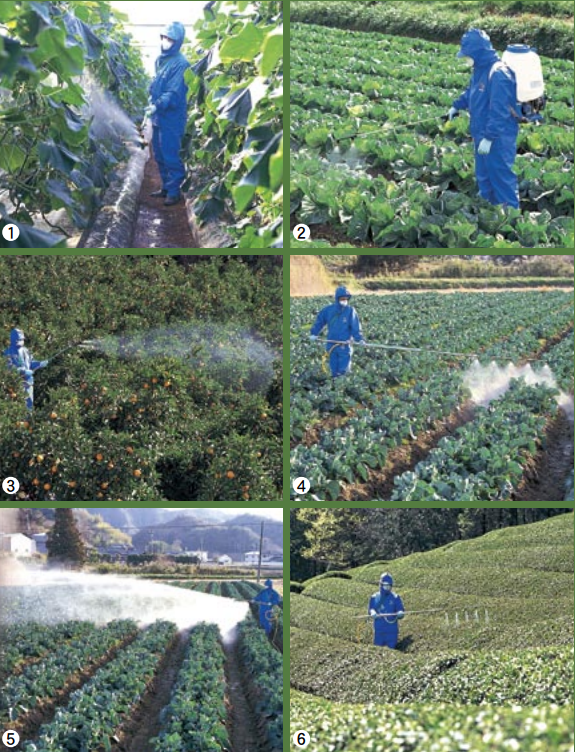

Lightweight body reduces workload; ideal foruse in both orchards and vegetable fields.
Produces an air-assisted spray with minimal drift. Spray can be applied easily onto both near and far targets -- switching between the two can be done easily at the grip. It also features a lightweight aluminium body, so that less physical strength will be required for operation, leading to higher efficiency. To prevent loosening, the lock cap was adopted.
FEATURES
- KIRINASHI (Ultra Low-Drift) ZOOM Boom Sprayer
- To save pesticides
- Drift-reducing
SPECIFICATIONS
| Nozzle # | N-KZV-20 |
|---|---|
| Average Drop Size (μm) | 380?`710?i1.5MPa?j |
| Pressure Range (MPa) | 1.0?`1.5 |
| Code No. | 14 12 76 |
|---|---|
| Product Name | Kirinashi (Ultra Low-Drift) ZOOM Boom Sprayer S 70 |
| Press | 5.8-7.2 l/min?i1.5MPa?j |
| Maximum Spray Reach | approx. 4-9 m |
| Coverage | approx. 15-80cm |
| Spray Angle (1.5MPa) | approx. 15-70° |
| Length/Weight | 70cm?E400g |
| Adapter | G1/4 |
# Coverage as of 1m from nozzle head
