SUMMARY
Just hold the onion leaves and insert them in.
The Cutting Machine cuts the roots and leaves.
Designed for dried onions and compatible with small to extra large sizes of onions.
FEATURES
- Equipped with durable disk cutters.
- Utilizing two different types of rollers to support cutting process.
- It reduces the root clogging by the new design.
- Easy to do maintenance and clean by taking off the side cover. The rollers can be replaced easily by unscrewing.
SPECIFICATIONS

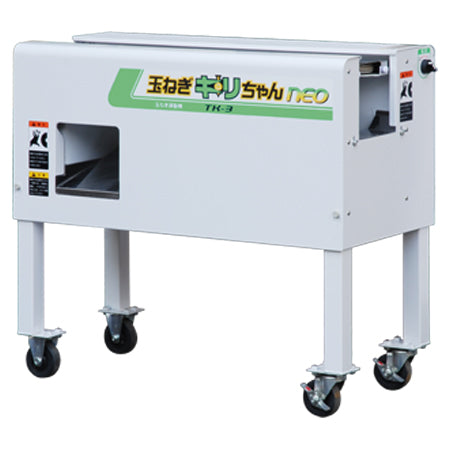

| Model Name | TK-3 |
|---|---|
| Length (mm) | 780 |
| Width (mm) | 355 |
| Height (mm) | 705 |
| Weight (kg) | 49 |
| Leave length (mm) | 10 to 30 |
| Cutting method | Disk cutter |
| Conveying method | Holding leaves by V belts |
| Conveying speed (mm/s) | 120 |
| Efficiency (pieces / hour) |
Up to 1800 |
| Motor | Single-phase 100V / 60W |
| Applicable onion |
|
